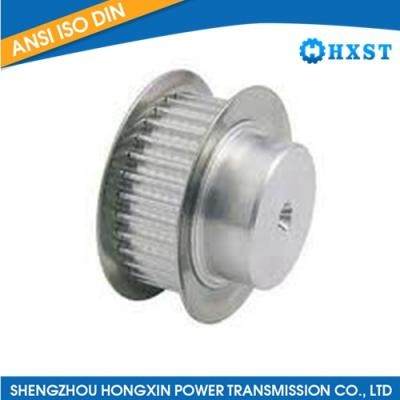

HTP 20M-290 Timing Pulley

Description

HTP 20M-290 Timing Pulley is a specific type of timing pulley used in power transmission systems. Here's some information about this particular pulley:

Size: The designation "20M-290" indicates the pitch size and belt length. In this case, it refers to a 20mm pitch size and a belt length of 290 teeth.
Material: The material used for this timing pulley can vary but is typically made from aluminum, steel, or other durable materials depending on the application requirements.
Timing Belt Compatibility: The 20M-290 designation corresponds to a specific tooth profile and pitch size, which must match with the corresponding timing belt for proper operation and synchronization in the power transmission system.
Application: Timing pulleys are commonly used in various industrial applications where precise motion control and synchronization are required, such as conveyors, robotics, printing machinery, and CNC machines.

Product details

TIMING PULLEYS HTP 20M-290

HTP 20M-290

SPC TYPE Z Dp De Df Dm DI F L d 52-20M-290 2F 52 331.04 326.72 350 280.0 - 311.2 343 38 56-20M-290 2F 56 356.51 352.19 375 280.0 - 311.2 343 38 60-20M-290 2F 60 381.97 377.65 405 280.0 - 311.2 343 38 64-20M-290 2F 64 407.44 403.12 430 300.0 - 311.2 343 38 68-20M-290 2F 68 432.9 428.58 455 300.0 - 311.2 343 38 72-20M-290 2F 72 458.37 454.05 480 300.0 - 311.2 343 44 80-20M-290 2F 80 509.3 504.98 530 300.0 - 311.2 343 44 90-20M-290 6F 90 572.96 568.64 595 300.0 508 311.2 343 44 112-20M-290 7 112 713.01 708.70 - 300.0 648 311.2 311.2 48 144-20M-290 7 144 916.73 912.41 - 350.0 852 311.2 311.2 48 168-20M-290 7 168 1069.52 1065.21 - 350.0 1005 311.2 311.2 48 192-20M-290 7 192 1222.31 1218.00 - 400.0 1158 311.2 311.2 48 216-20M-290 7 216 1375.1 1370.78 - 400.0 1300 311.2 311.2 48
