HTP 20M-230 Timing Pulley
  1. HTP 20M-230 Timing Pulley

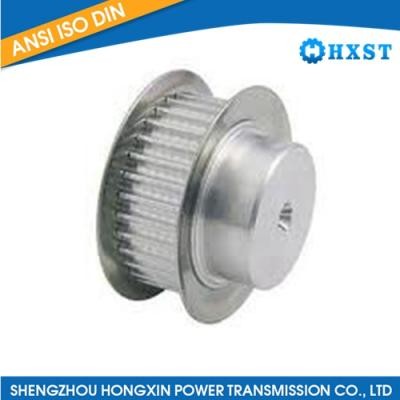

HTP 20M-230 Timing Pulley

Product Item:HXST-271

Model:HTP 20M-230 Timing Pulley

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

HTP 20M-230 Timing Pulley , l timing pulley
Send InquiryLive chat

Description

HTP 20M-230 Timing Pulley is a specific type of timing pulley used in power transmission systems. Here's some information about this particular pulley:

Size: The designation "20M-230" indicates the pitch size and belt length. In this case, it refers to a 20mm pitch size and a belt length of 230 teeth.
Material: The material used for this timing pulley can vary but is typically made from aluminum, steel, or other durable materials depending on the application requirements.
Timing Belt Compatibility: The 20M-230 designation corresponds to a specific tooth profile and pitch size, which must match with the corresponding timing belt for proper operation and synchronization in the power transmission system.
Application: Timing pulleys are commonly used in various industrial applications where precise motion control and synchronization are required, such as conveyors, robotics, printing machinery, and CNC machines.


Product details

TIMING PULLEYS HTP 20M-230


HTP 20M-230

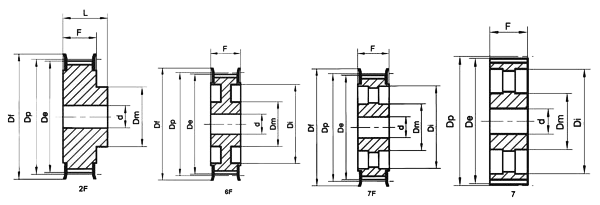

SPC TYPE Z Dp De Df Dm DI F L d
38-20M-230 2F 38 241.92 237.60 265 181.0 - 250.8 282.8 38
40-20M-230 2F 40 254.56 250.33 275 203.0 - 250.8 282.8 38
44-20M-230 2F 44 280.11 275.79 300 210.0 - 250.8 282.8 38
48-20M-230 2F 48 305.88 301.26 325 228.0 - 250.8 282.8 38
52-20M-230 2F 52 331.04 326.72 350 280.0 - 250.8 282.8 38
56-20M-230 2F 56 356.51 352.19 375 280.0 - 250.8 282.8 38
60-20M-230 2F 60 381.97 377.65 405 280.0 - 250.8 282.8 38
64-20M-230 2F 64 407.44 403.12 430 300.0 - 250.8 282.8 38
68-20M-230 2F 68 432.9 428.58 455 300.0 - 250.8 282.8 38
72-20M-230 2F 72 458.37 454.05 480 300.0 - 250.8 282.8 38
80-20M-230 6F 80 509.3 504.98 530 300.0 445 250.8 282.8 38
90-20M-230 7F 90 572.96 568.64 595 300.0 508 250.8 282.8 38
112-20M-230 7 112 713.01 708.70 - 300.0 648 250.8 282.8 38
144-20M-230 7 144 916.73 912.41 - 350.0 852 250.8 282.8 44
168-20M-230 7 168 1069.52 1065.21 - 350.0 1005 250.8 282.8 44
192-20M-230 7 192 1222.31 1218.00 - 400.0 1158 250.8 282.8 48
216-20M-230 7 216 1375.1 1370.78 - 400.0 1300 250.8 282.8 48
