HTP 20M-170 Timing Pulley
  1. HTP 20M-170 Timing Pulley

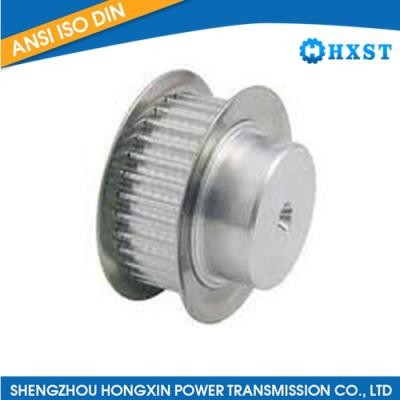

HTP 20M-170 Timing Pulley

Product Item:HXST-270

Model:HTP 20M-170 Timing Pulley

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

HTP 20M-170 Timing Pulley , htd timing pulleys , l pitch timing belt , d17 timing belt tensioner
Send InquiryLive chat

Description

HTP 20M-170 Timing Pulley is a specific type of timing pulley used in power transmission systems. Here's some information about this particular pulley:

Size: The designation "20M-170" indicates the pitch size and belt length. In this case, it refers to a 20mm pitch size and a belt length of 170 teeth.
Material: The material used for this timing pulley can vary but is typically made from aluminum, steel, or other durable materials depending on the application requirements.
Timing Belt Compatibility: The 20M-170 designation corresponds to a specific tooth profile and pitch size, which must match with the corresponding timing belt for proper operation and synchronization in the power transmission system.
Application: Timing pulleys are commonly used in various industrial applications where precise motion control and synchronization are required, such as conveyors, robotics, printing machinery, and CNC machines.

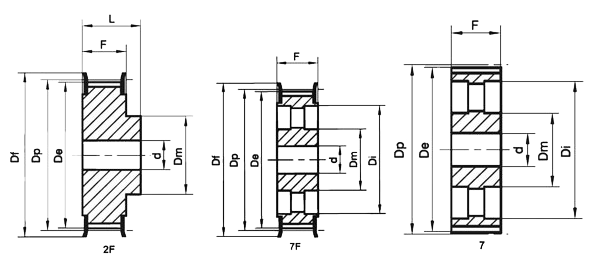

Product details

TIMING PULLEYS HTP 20M-170


HTP 20M-170

SPC TYPE Z Dp De Df Dm DI F L d
34-20M-170 2F 34 216.45 212.13 240 165.0 - 190.5 222.5 32
36-20M-170 2F 36 229.18 224.87 250 178.0 - 190.5 222.5 32
38-20M-170 2F 38 241.92 237.60 265 181.0 - 190.5 222.5 32
40-20M-170 2F 40 254.56 250.33 275 203.0 - 190.5 222.5 32
44-20M-170 2F 44 280.11 275.79 300 210.0 - 190.5 222.5 32
48-20M-170 2F 48 305.88 301.26 325 240.0 - 190.5 222.5 32
52-20M-170 2F 52 331.04 326.72 350 280.0 - 190.5 222.5 32
56-20M-170 2F 56 356.51 352.19 375 280.0 - 190.5 222.5 32
60-20M-170 2F 60 381.97 377.65 405 280.0 - 190.5 222.5 38
64-20M-170 2F 64 407.44 403.12 430 280.0 - 190.5 222.5 38
68-20M-170 2F 68 432.9 428.58 455 280.0 - 190.5 222.5 38
72-20M-170 7F 72 458.37 454.05 480 280.0 394 190.5 190.5 38
80-20M-170 7F 80 509.3 504.98 530 280.0 445 190.5 190.5 38
90-20M-170 7F 90 572.96 568.64 595 280.0 508 190.5 190.5 38
112-20M-170 7 112 713.01 708.70 - 300.0 648 190.5 190.5 38
144-20M-170 7 144 916.73 912.41 - 300.0 852 190.5 190.5 44
168-20M-170 7 168 1069.52 1065.21 - 350.0 1005 190.5 190.5 44
192-20M-170 7 192 1222.31 1218.00 - 350.0 1158 190.5 190.5 48
216-20M-170 7 216 1375.1 1370.78 - 350.0 1300 190.5 190.5 48
