HRC Flexible Couplings
  1. HRC Flexible Couplings

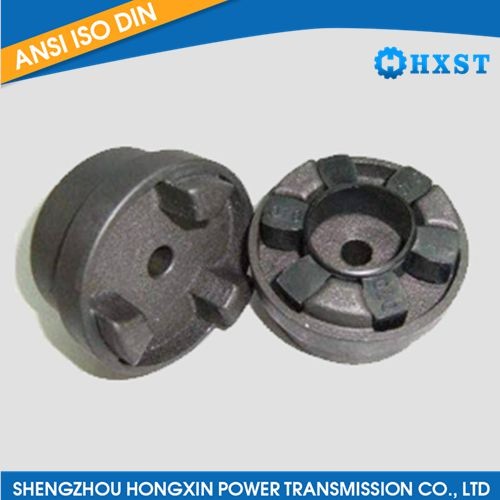

HRC Flexible Couplings

Product Item:HXST-914

Model: HRC Flexible Couplings

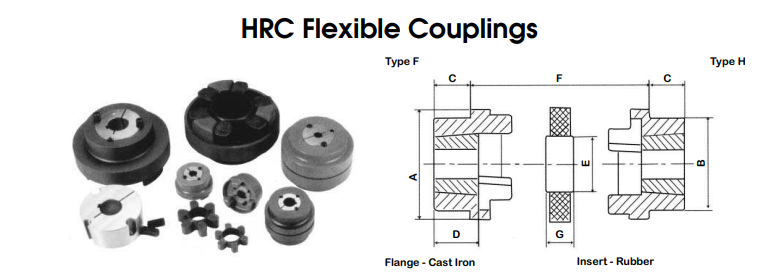

Material: The flanges of HRC Flexible Couplings are typically made from materials like cast iron or steel, while the elastomeric spider is made from materials such as neoprene or natural rubber.

Damping Characteristics: The elastomeric spider of HRC Flexible Couplings offers damping properties, reducing the transmission of vibrations and shocks between the connected shafts

Application Versatility: HRC Flexible Couplings find application in a wide range of industries, including manufacturing, automation, pumps, conveyors, and other mechanical systems. They are particular

HRC Flexible Couplings , flexible steel coupling , flexible rubber couplings , 4 inch flexible rubber coupling
Send InquiryLive chat

Description

HRC (Highly Resilient Coupling) flexible couplings are a type of elastomeric coupling used to connect two shafts for torque transmission. They are designed to accommodate misalignment, reduce vibration, and provide shock absorption in various industrial applications.

Key features of HRC flexible couplings include:

Elastomeric Element: The heart of the HRC coupling is its flexible elastomeric element, typically made of synthetic rubber or polyurethane. This element acts as a cushion, absorbing shocks and vibrations, while still providing torque transmission between the connected shafts.

Misalignment Compensation: HRC couplings can accommodate angular, parallel, and axial misalignments. They have a certain amount of flexibility that allows for slight displacements between the shafts, reducing stress on the system.

Torque Transmission: Despite their flexibility, HRC couplings are capable of transmitting moderate to high torque loads. The elastomeric element has torsional stiffness, enabling efficient power transfer between the shafts.

Easy Installation and Maintenance: HRC couplings are relatively easy to install and require minimal maintenance. They typically consist of two hubs and a removable elastomeric insert, making replacement straightforward when needed.

Dampening Properties: The elastomeric element in HRC couplings provides excellent dampening characteristics, reducing vibration and noise in the system. This can improve overall equipment performance and increase its lifespan.

HRC flexible couplings are widely used in various industries, including pumps, compressors, conveyors, fans, and other machinery applications. Their ability to handle misalignment, dampen vibrations, and transmit torque effectively makes them suitable for demanding environments.

It's important to note that HRC couplings have specific torque and misalignment limits specified by manufacturers. Operating beyond these limits can lead to premature wear, reduced coupling life, and potential equipment damage. Therefore, it's essential to follow the manufacturer's recommendations for proper selection, installation, and maintenance of HRC flexible couplings.
