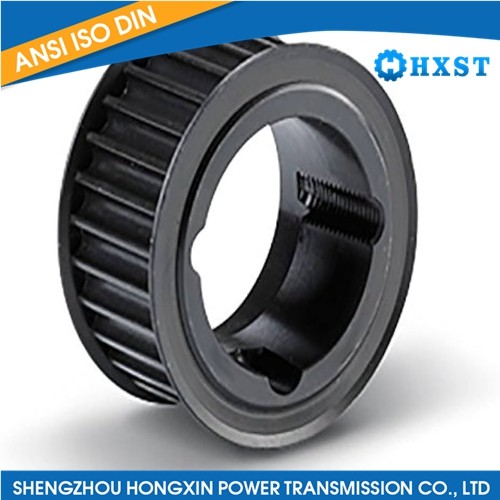

H100 Taper Bushing Timing Pulley
  1. H100 Taper Bushing Timing Pulley

H100 Taper Bushing Timing Pulley

Product Item:HXST-225

Model:H100 Taper Bushing Timing Pulley

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

H100 Taper Bushing Timing Pulley , taper bushing pulley , 18h100 timing pulley , taper lock bushing pulley
Send InquiryLive chat

Description

H100 Taper Bushing Timing Pulley is a specific variant of the timing pulley that incorporates a taper bushing for easy installation and removal. Here are some key features and characteristics of the H100 Taper Bushing Timing Pulley:

Material: The pulley is typically made from high-quality materials such as aluminum or steel, offering durability and strength.

Taper Bushing System: The H100 pulley utilizes a taper bushing system, which allows for quick and secure mounting onto a shaft. The taper bushing provides a tight fit, minimizing slippage during operation. It also enables easy disassembly and repositioning of the pulley when needed.

Tooth Profile: The pulley has teeth on its surface that engage with the teeth of the timing belt. The tooth profile is usually standardized, such as trapezoidal (T-type or HTD) or curvilinear (GT2), depending on the specific application requirements. This ensures accurate power transmission and synchronization.

Size and Configuration: The H100 Taper Bushing Timing Pulley comes in various sizes and configurations to accommodate different shaft diameters, belt widths, and number of teeth. This versatility allows for compatibility with a wide range of applications and design requirements.

Application Range: The H100 Taper Bushing Timing Pulley is commonly used in applications that require precise motion control and synchronization. It finds applications in power transmission systems, robotics, automation, conveyors, and other machinery where accurate timing is essential.
