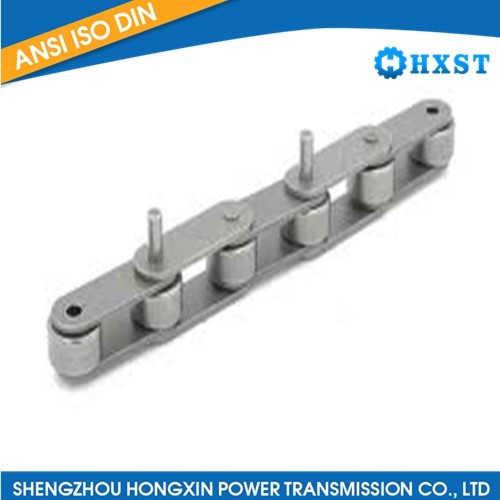

Double Pitch Conveyor Chain with Extended Pins

Product Item:HXST-286

Model:Double Pitch Conveyor Chain with Extended Pins

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

Description

Double pitch Conveyor Chain with extended pins refers to a type of double pitch chain that features extended pins beyond the outer plates of the chain links. These extended pins provide additional mounting points for attaching accessories, components, or equipment to the chain. Here are some key features and applications of double pitch conveyor chain with extended pins:

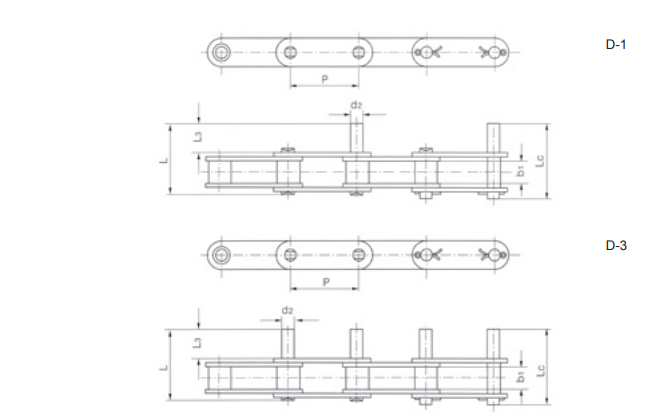

Extended Pin Design: The extended pins on the double pitch conveyor chain protrude beyond the outer plates of the chain links. They typically have threaded ends or holes for easy attachment of various components or accessories.

Versatility: Double pitch conveyor chains with extended pins offer versatility in terms of customization and adaptability. The extended pins provide additional attachment points along the chain, allowing for the installation of specialized attachments, guide rails, brackets, sensors, or other equipment as needed.

Mounting Accessories: The extended pins can be used to mount various accessories or components onto the chain. This includes guide rails, pusher dogs, flights, diverters, product holding devices, or any other accessory required for specific material handling applications.

Customization Options: Double pitch conveyor chains with extended pins can be customized based on specific application requirements. This includes variations in chain pitch, pin length, attachment spacing, and overall chain configuration. Customization ensures compatibility with different conveyor systems and load capacities.

Application Diversity: Double pitch conveyor chains with extended pins find applications in a wide range of industries and material handling processes. They are commonly used in assembly lines, packaging systems, food processing, bottling plants, and other conveyor applications where additional components or attachments need to be mounted along the chain.

Maintenance and Lubrication: Regular maintenance and lubrication are necessary for optimal performance and longevity of double pitch conveyor chains with extended pins. This includes cleaning the chain, inspecting and replacing worn-out components, and applying proper lubrication to reduce friction and extend chain life
