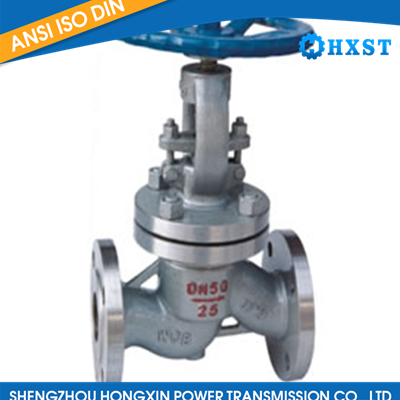

To cast a steel intercept valve, the following general steps are usually involved:
Steps for casting a steel intercept valve: Pattern Making: Create a pattern of the valve that will be used to make the mold.
Mold Making:
Sand Casting: The most common method where sand is packed around the pattern to form the mold cavity. Investment Casting: Wax pattern of the valve is coated in ceramic to create the mold. Melting and Pouring:
Melting steel in a furnace to the desired temperature. Pouring the molten steel into the mold cavity. Cooling and Solidification:
Allowing the molten steel to cool and solidify within the mold. Removing the Casting:
Breaking or removing the mold to reveal the cast steel intercept valve. Finishing Operations:
Grinding, machining, and any necessary post-casting operations to achieve the final shape and specifications. Quality Checks:
Inspecting the casting for any defects, ensuring it meets required standards. Testing:
Conducting tests such as pressure testing to ensure the functionality and integrity of the intercept valve. It's important to follow industry standards and regulations during each step of the casting process to ensure the quality and performance of the steel intercept valve.
