Bevel gear transmission gate valve

Description

Bevel Gear Transmission Gate Valve is a type of gate valve that utilizes a bevel gear mechanism for manual operation. Here is an overview of this specific valve:

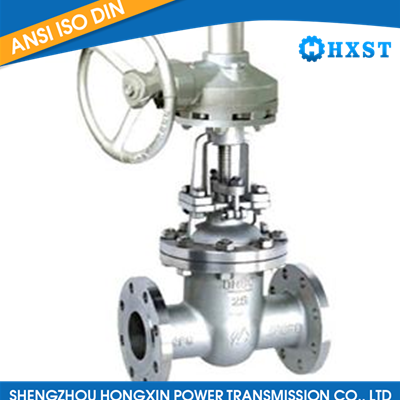

Bevel Gear Transmission Gate Valve
Design: The gate valve incorporates a gate or wedge mechanism that moves up and down to control the flow of fluids. The bevel gear transmission system includes bevel gears that provide a right-angle drive for smooth and efficient operation.

Bevel Gear Mechanism: Bevel gears are designed with intersecting axes and cone-shaped teeth for transmitting motion at an angle. This mechanism allows for the conversion of rotational motion into linear motion to control the position of the gate within the valve.

Applications: Bevel gear transmission gate valves are commonly used in industrial applications where manual operation with precise control is required, such as in pipelines, power plants, refineries, and other fluid handling systems.

Features:

Manual operation using the bevel gear transmission system.
Provides precise and reliable control over the gate position for accurate flow regulation.
Offers smooth and efficient operation with the bevel gear mechanism.
Typically equipped with a handwheel or gear operator for ease of use.
Benefits:

Reliable manual operation.
Ability to maintain specific flow rates.
Durability and longevity.
Suitable for applications where power-operated valves are not feasible or necessary.
Variants: Bevel gear transmission gate valves are available in various sizes, pressure ratings, materials (such as cast iron, carbon steel, stainless steel), and end connections to meet diverse application requirements.

For detailed specifications, including size ranges, pressure ratings, materials of construction, and customization options, it is recommended to consult with valve manufacturers or suppliers specializing in bevel gear transmission gate valves. They can provide tailored information and assistance in selecting the most suitable valve for your specific industrial application.
