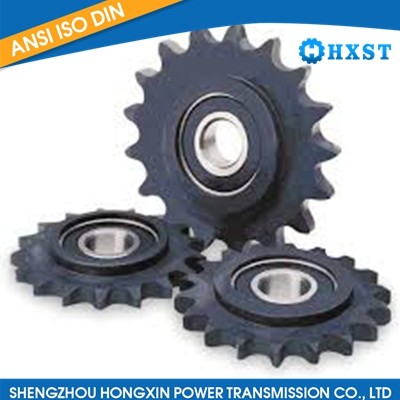

ANSI Ball Bearing Idler Sprocket
  1. ANSI Ball Bearing Idler Sprocket

ANSI Ball Bearing Idler Sprocket

Product Item:HXST-094

Model: Ball Bearing Idler Sprocket

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

ANSI Ball Bearing Idler Sprocket , ball bearing idler sprocket , idler sprocket bearing , sprocket and bearing
Send InquiryLive chat

Description

ANSI Ball Bearing Idler Sprocket is a type of sprocket designed to guide and support the chain in power transmission systems. It features built-in ball bearings that allow for smooth rotation and reduce friction between the sprocket and the chain.

Here are some key features and characteristics of the ANSI Ball Bearing Idler Sprocket:

Ball Bearing Design: The sprocket incorporates ball bearings within its structure, allowing for smooth and efficient rotation. The ball bearings reduce friction between the sprocket and the chain, resulting in improved performance and extended chain life.

Idler Function: The primary function of an idler sprocket is to guide and support the chain, ensuring proper tension and alignment. The ball bearing design of the ANSI Ball Bearing Idler Sprocket provides reliable and consistent chain engagement, reducing wear and increasing system efficiency.

ANSI Standard: The ANSI (American National Standards Institute) standard ensures that the sprocket dimensions and tooth profiles comply with industry standards, ensuring compatibility and interchangeability with other ANSI-compliant components.

Durable Construction: The ANSI Ball Bearing Idler Sprocket is typically constructed from durable materials such as steel or alloy, ensuring strength and longevity. This allows it to withstand heavy loads and harsh operating conditions.

Versatility: The ANSI Ball Bearing Idler Sprocket can be used in various industrial applications, including conveyor systems, material handling equipment, and power transmission systems. It is compatible with ANSI roller chains, making it suitable for a wide range of applications.

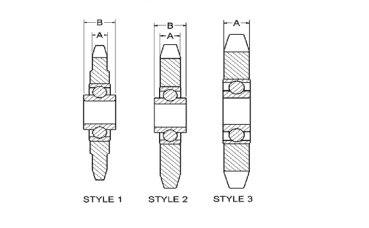

No. of Teeth Part No. Chain Pitch OD L W App. Wt. (Lbs) Bore Bearing Included
17 ISHD4017-12 40 2.97 0.72 0.284 0.52 1/2" 203KRR2
17 ISHD4017-58 40 2.97 0.72 0.284 0.52 5/8" 203KRR2
18 ISHD4018-12 40 3.14 0.72 0.284 0.53 1/2" 203KRR2
18 ISHD4018-58 40 3.14 0.72 0.284 0.53 5/8" 203KRR2
13 ISHD5013-12 50 2.91 0.72 0.343 0.75 1/2" 203KRR2
13 ISHD5013-58 50 2.91 0.72 0.343 0.75 5/8" 203KRR2
15 ISHD5015-12 50 3.32 0.72 0.343 0.75 1/2" 203KRR2
15 ISHD5015-58 50 3.32 0.72 0.343 0.75 5/8" 203KRR2
17 ISHD5017-12 50 3.72 0.72 0.343 0.78 1/2" 203KRR2
17 ISHD5017-58 50 3.72 0.72 0.343 0.78 5/8" 203KRR2
13 ISHD6013-12 60 3.51 0.72 0.459 0.76 1/2" 203KRR2
13 ISHD6013-58 60 3.51 0.72 0.459 0.76 5/8" 203KRR2
15 ISHD6015-12 60 3.98 0.72 0.459 1.06 1/2" 203KRR2
15 ISHD6015-58 60 3.98 0.72 0.459 1.06 1/2" 203KRR2
11 ISHD8011-34 80 4.01 0.55 0.575 1.50 3/4" 6204-12-2RS
12 ISHD8012-1 80 4.36 0.55 0.575 1.50 1" 6205-1-2RS
12 ISHD8012-34 80 4.36 0.55 0.575 1.50 3/4" 6204-12-2RS
