Product Item:HXPT-062
Model: ANSI 35A-B-1-2-3 Sprockets and Platewheel
Material: C45, stainless steel, etc.
Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc
Package:Standard export case, individual package (neutral or colorbox) available.

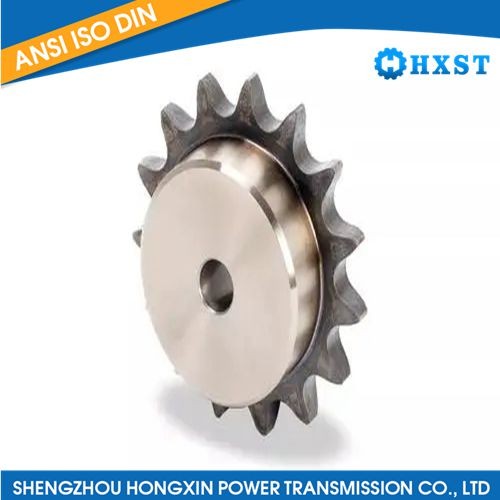

ANSI 35-1 Hub Steel Sprocket
For #35 Single Strand Chain with
3/8 Inch Pitch
3/16 Inch Roller Width
0.200 Inch Roller Diameter
0.169 Inch Single Tooth Width (B1)
0.169 Inch Sprocket Tooth Face Width (B1)
2.067 Inch Outside Diameter (Approximate) (de)
1 7/16 Inch Hub Diameter (dn)
3/8 Inch approximate Pilot hole / bore +/- 1/16 inch (d1)
1 1/8 Inch Total Width (A)
