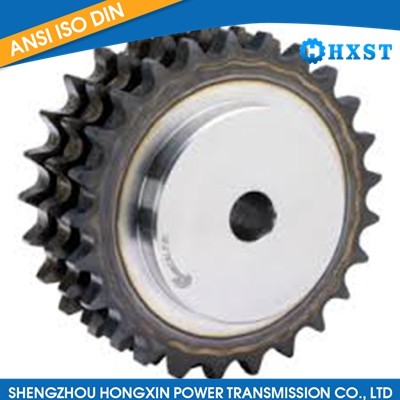

80B-3 ASA Triplex Sprocket
  1. 80B-3 ASA Triplex Sprocket

80B-3 ASA Triplex Sprocket

Product Item:HXST-042

Model: 80B-3 ASA Duplex Sprocket

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

80b-3 asa duplex sprocket , b sprocket
Send InquiryLive chat

Description

Triplex-sprockets ASA80-3

Kettenrad_triplex


  • ISO-No.: ASA80-3 = 16A-3 (1“ x 5/8″)
  • pitch: 25,4 mm
  • inner width: 15,88 mm
  • Roller-dia.: 15,88 mm
  • tooth width bf3 73,3 mm
  • ba 3,2 mm (radius width)
  • rx 27 mm (min. tooth radius)
No. of teeth pitch circle tip circle hub pilot bore bore total weight
Ø Ø Ø Ø max. length approx
d0 dk dn d1 d2 L kg
Material steel/C45
12 98,10 109,0 72 25 44 100 3,62
13 106,10 117,0 80 25 49 100 4,45
14 114,10 125,0 88 25 55 100 5,37
15 122,20 133,0 96 25 58 100 6,37
16 130,20 141,0 104 30 65 100 7,45
17 138,20 149,0 112 30 67 100 8,60
18 146,30 157,0 120 30 75 100 9,84
19 154,30 165,0 128 30 78 100 11,16
20 162,40 173,0 130 30 80 100 12,36
