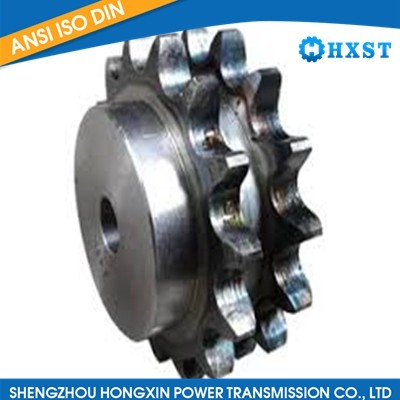

80B-2 Stock Sprocket

Description

80B-2 stock sprocket is a specific type of sprocket that features a standard configuration. Here are some key features of the 80B-2 stock sprocket:

Standard Sprocket Design: The "stock" designation indicates that the sprocket has a commonly used and readily available design.

80B-2 Designation: The "80B-2" designation specifies the specific model or part number for the stock sprocket. It may include information about the tooth count, pitch, bore size, and other relevant specifications.

Teeth Configuration: The 80B-2 stock sprocket will have teeth designed to match the pitch and width of the corresponding roller chain. The tooth profile and configuration ensure proper engagement and smooth operation with the chain.

Material: Stock sprockets like the 80B-2 can be made from various materials, such as carbon steel or stainless steel. The choice of material depends on factors such as load requirements, environmental conditions, and cost considerations.

Applications: Stock sprockets are commonly used in a wide range of power transmission systems across various industries. They are suitable for applications such as machinery, conveyors, agricultural equipment, or industrial machinery.

Product details (Dimension : inch)

No. Teeth Outside Diameter Do Bore (Inches) Hub (Inches) Weight Lbs. (App) Stock d Rec. Max. Dia. BD Length Thru BL 8 3.010 1 1 1 15/16* 1 5/8 1.4 9 3.350 1 1 5/16 2 1/4* 1 5/8 1.6 10 3.680 1 1 1/2 2 9/16* 1 5/8 2.2 11 4.010 1 1 5/8 2 13/16* 1 5/8 3.2 12 4.330 1 1 7/8 3 1/8* 1 5/8 3.4 13 4.660 1 2 3 1 1/2 3.5 14 4.980 1 2 1/4 3 1/4 1 1/2 4.1 15 5.300 1 2 1/2 3 13/16 1 1/2 5.3 16 5.630 1 2 3/4 4 1 1/2 5.9 17 5.950 1 2 3/4 4 1 1/2 6.6 18 6.270 1 2 3/4 4 1/4 1 1/2 7.3 19 6.590 1 2 3/4 4 1/4 1 1/2 7.8 20 6.910 1 2 3/4 4 1/4 1 1/2 8.4 21 7.240 1 2 3/4 4 1/4 1 3/4 9.4 22 7.560 1 2 3/4 4 1/4 1 3/4 10.0 23 7.880 1 2 3/4 4 1/4 1 3/4 10.7 24 8.200 1 2 3/4 4 1/4 1 3/4 11.3 25 8.520 1 2 3/4 4 1/4 1 3/4 11.9 26 8.840 1 1/4 3 1/4 4 3/4 2 14.3 27 9.160 1 1/4 3 1/4 4 3/4 2 15.4 28 9.480 1 1/4 3 1/4 4 3/4 2 16.0 29 9.800 1 3/16 3 1/4 4 3/4 2 17.1 30 10.110 1 3/16 3 1/4 4 3/4 2 17.4 31 10.430 1 3/16 3 1/4 4 3/4 2 18.7 32 10.750 1 3/16 3 1/4 4 3/4 2 19.5 33 11.070 1 3/16 3 1/4 4 3/4 2 19.6 34 11.390 1 3/16 3 1/4 4 3/4 2 21.3 35 11.710 1 3/16 3 1/4 4 3/4 2 22.1 36 12.030 1 3 Related Products UKFL 200 Pillow Block Bearing ANSI 35B-3 32T Triplex Chain Sprocket ANSI 35B-3 39T Triplex Chain Sprocket Stainless steel water smoke parts HTP 14M-40 Taper Bushing Timing Pulley D35BTL18H Double Taper lock Sprocket
