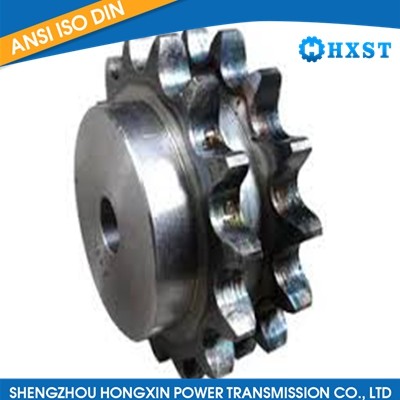

40B-2 Stock Sprocket

Description

40B-2 stock sprocket is a specific type of sprocket that features a standard configuration. Here are some key features of the 40B-2 stock sprocket:

Standard Sprocket Design: The "stock" designation indicates that the sprocket has a commonly used and readily available design.

40B-2 Designation: The "40B-2" designation specifies the specific model or part number for the stock sprocket. It may include information about the tooth count, pitch, bore size, and other relevant specifications.

Teeth Configuration: The 40B-2 stock sprocket will have teeth designed to match the pitch and width of the corresponding roller chain. The tooth profile and configuration ensure proper engagement and smooth operation with the chain.

Material: Stock sprockets like the 40B-2 can be made from various materials, such as carbon steel or stainless steel. The choice of material depends on factors such as load requirements, environmental conditions, and cost considerations.

Applications: Stock sprockets are commonly used in a wide range of power transmission systems across various industries. They are suitable for applications such as machinery, conveyors, agricultural equipment, or industrial machinery.

Product details

No. Teeth Outside Diameter Do Bore (Inches) Hub (Inches) Weight Lbs. (App) Stock d Rec. Max. Dia. BD Length Thru BL 8 1.500 1/2 1/2 31/32* 7/8 .18 9 1.670 1/2 9/16 1 1/16* 7/8 .20 10 1.840 1/2 3/4 1 1/4* 7/8 .27 11 2.000 1/2 7/8 1 3/8* 7/8 .35 12 2.170 1/2 1 1 9/16* 7/8 .45 13 2.330 1/2 1 1/16 1 9/16 7/8 .50 14 2.490 1/2 1 1/8 1 11/16 7/8 .59 15 2.650 1/2 1 1/4 1 13/16 7/8 .70 16 2.810 5/8 1 3/8 2 7/8 .79 17 2.980 5/8 1 7/16 2 1/8 1 1.04 18 3.140 5/8 11/2 2 5/16 1 1.22 19 3.300 5/8 1 3/4 2 1/2 1 1.43 20 3.460 5/8 1 7/8 2 5/8 1 1.56 21 3.620 5/8 1 7/8 2 3/4 1 1.73 22 3.780 5/8 1 7/8 2 7/8 1 1.96 23 3.940 5/8 2 3 1 2.13 24 4.100 5/8 2 1/4 3 1/4 1 2.41 25 4.260 5/8 2 1/4 3 1/4 1 2.54 26 4.420 5/8 2 1/4 3 1/4 1 2.58 27 4.580 5/8 2 1/4 3 1/4 1 2.66 28 4.740 5/8 2 1/4 3 1/4 1 2.73 29 4.900 5/8 2 1/4 3 1/4 1 2.80 30 5.060 5/8 Related Products Silent Chain Chain Sprocket and Chain Conveyor Chain Sprocket with Heat Treatment ANSI 40A-1 47T Plate wheel chain sprocket ANSI 35B-2 21T Double Chain Sprocket Type GD Heavy Duty Steel Bearings ANSI 40A-2 13T Double Plate wheel chain sprocket
