40B-1 ASA Sprocket
  1. 40B-1 ASA Sprocket

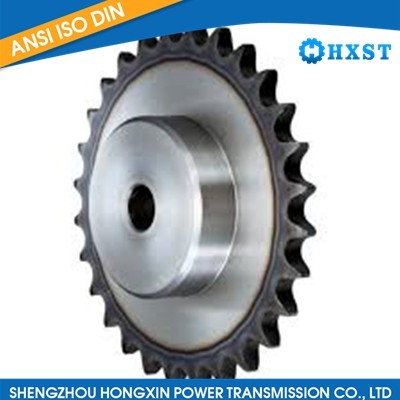

40B-1 ASA Sprocket

Product Item:HXST-027

Model: 40B-1 ASA Sprocket

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

40b-1 asa sprocket , 40b16 sprocket , h40b15
Send InquiryLive chat

Description

ASA-simplex sprockets ASA40-1

Kettenräder 04-1
  • ISO-no.: ASA40-1 (1/2″ x 5/16″)
  • pitch: 12,7 mm
  • inner width: 7,94 mm
  • Roller-dia.: 7,94 mm
  • tooth width bf1: 7,4 mm
  • ba 1,6 mm (radius width)
  • rx 13,5 mm (min. tooth radius)

No. of teeth

pitch circle

tip circle

hub

pilot bore

total

weight

Ø

Ø

Ø

Ø

length

approx

z

d0

dk

dn

d1

L

kg

10 41,10 47,66 26 10 25 0,10
11 45,08 51,64 29 10 25 0,15
12 49,07 55,63 35 10 28 0,20
13 53,07 59,63 35 10 28 0,25
14 57,07 63,63 35 10 28 0,32
15 61,08 67,64 48 10 28 0,38
16 65,10 71,66 48 10 28 0,45
17 69,12 75,68 48 10 28 0,50
18 73,14 79,70 60 12 28 0,59
19 77,16 83,72 60 12 28 0,65
20 81,18 87,74 60 12 28 0,75
21 85,21 91,77 65 12 28 0,85
22 89,24 95,80 65 12 28 0,93
23 93,27 99,83 65 12 28 0,95
24 97,30 103,86 70 14 28 0,97
25 101,33 107,89 70 14 28 1,00
26 105,36 111,92 70 14 28 1,10
27 109,40 115,96 70 16 30 1,13
28 113,43 119,99 70 16 30 1,15
30 121,50 128,06 80 16 30 1,45
32 129,57 136,13 80 16 30 1,80
35 141,68 148,24 90 16 30 1,95
36 145,72 152,28 90 16 30 2,20
38 153,79 160,35 90 16 30 2,30
40 161,87 168,43 90 16 30 2,45
