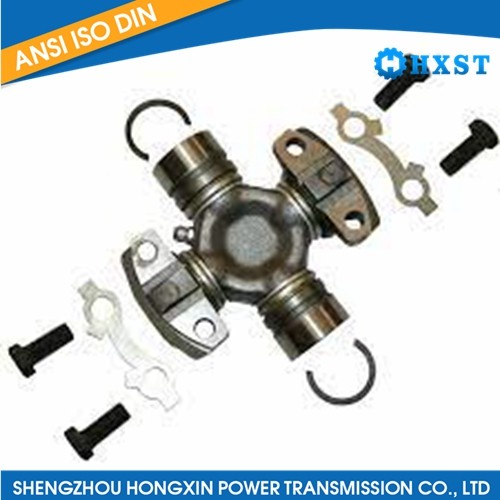

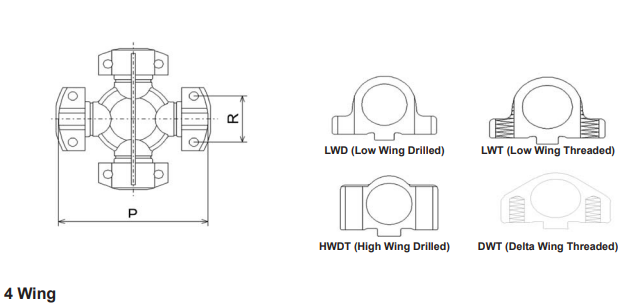

4 Wing Universal Joint

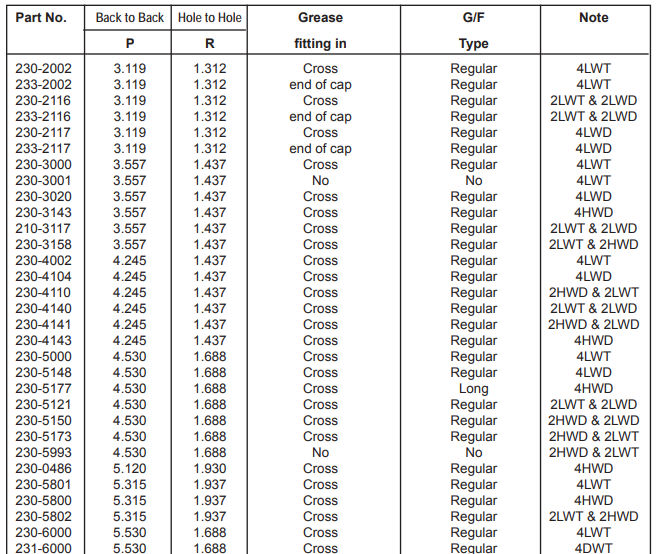

Product Item:HXST-1808

Model: 4 Wing Universal Joint

Material: Typically made from high-strength materials such as alloy steel or stainless steel to ensure durability and strength

Torque Capacity: Designed to handle significant torque loads while maintaining smooth rotation

Maintenance: Regular inspection and lubrication are recommended to ensure optimal performance and longevity of the universal joint

Description

A 4-wing universal joint, also known as a cross or cruciform universal joint, is a specific type of mechanical joint used to transmit rotational motion between two shafts that are not aligned with each other. Here's an explanation of its components:

Wings: The wings, also called yokes or forks, are the main components of the universal joint. They consist of four arms arranged in a cross shape.
The 4-wing universal joint operates by connecting two shafts at right angles to each other while allowing for angular misalignment and axial movement. The four wings are connected by a center block, and bearings are typically placed at each intersection point to enable smooth rotational movement between the shafts.

This type of universal joint is commonly used in various applications, such as automotive drivetrains, industrial machinery, and power transmission systems. It provides flexibility, reliable operation, and efficient power transmission even when the connected shafts are not perfectly aligned.

Proper lubrication and maintenance are essential to ensure the longevity and optimal performance of the 4-wing universal joint. Additionally, it's important to consider the load capacity and operating conditions when selecting a suitable size and material for the universal joint to meet the specific requirements of the application
