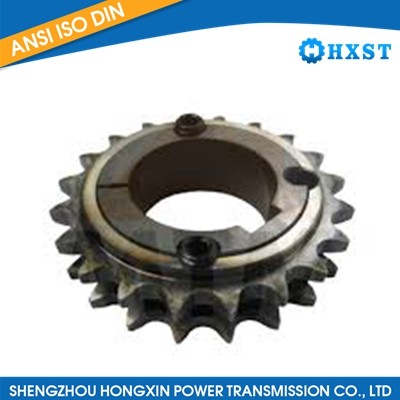

35B-2 Duplex Taper lock Sprocket
  1. 35B-2 Duplex Taper lock Sprocket

35B-2 Duplex Taper lock Sprocket

Product Item:HXST-090

Model:35B-2 Duplex Taper lock Sprocket

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

double 35 chain sprocket , sprocket taper lock , taper lock sprocket , double 35 roller chain
Send InquiryLive chat

Description

35B-2 Duplex Taper lock Sprocket is a specific type of sprocket that follows the ANSI (American National Standards Institute) standard. Here's what each part of the designation represents:

"35" refers to the pitch diameter of the sprocket, which is approximately 3/8 inch or 9.525 millimeters. This measurement helps determine the size and compatibility of the sprocket with other components in a mechanical system.
"B" indicates the chain size compatible with this sprocket. In this case, it is designed to work with a British Standard roller chain, specifically the "08B" size.
"-2" signifies that this sprocket has two sets of teeth on it, making it a duplex sprocket. These multiple sets of teeth enable engagement with two separate strands of chain simultaneously.
"Taper Lock" refers to the method of installation for this particular sprocket. The taper lock design allows for easy mounting and removal by utilizing a tapered bushing/bore arrangement.
Overall, the 35B-2 Duplex Taper Lock Sprocket is a standardized component used for power transmission in mechanical systems that require the use of a British Standard roller chain.
