20U Unequal Steel Idlers

Product Item:HXST-1606

Model: 20T Equal Impact Idlers

Materials: Steel, ETC

Processing: parameter processing

Package:Standard export case, individual package (neutral or colorbox) available.

Description

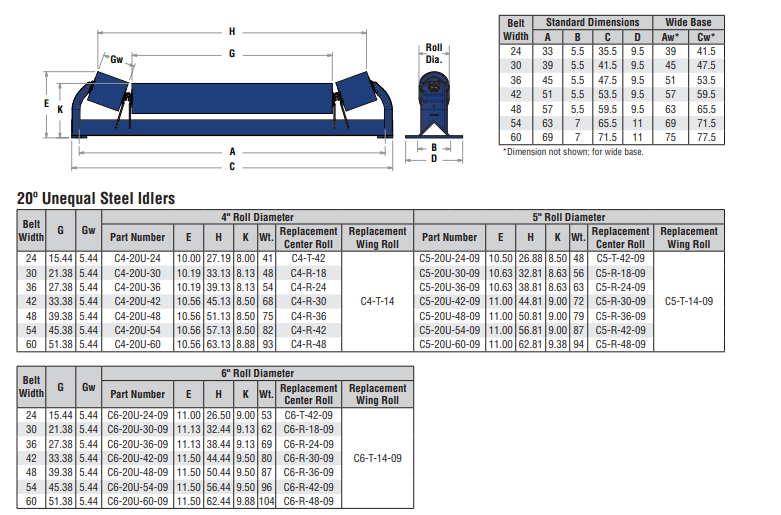

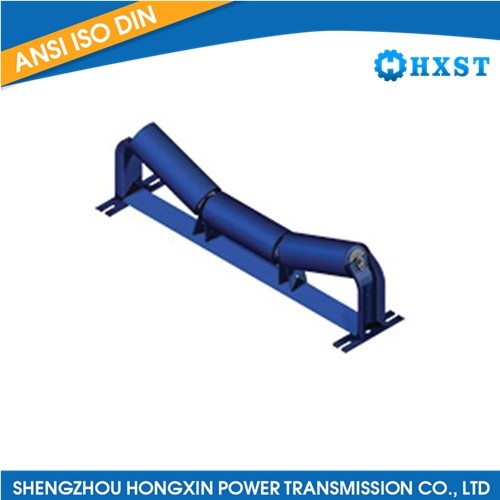

20U Unequal Steel Idlers

The 20U Unequal Steel Idlers are a type of idler roller commonly used in conveyor systems. These idlers are designed with an unequal roll diameter to handle uneven loads and provide support to the conveyor belt.

Here are some key features and characteristics of the 20U Unequal Steel Idlers:

Unequal Roll Diameter: The 20U idlers have a larger roll diameter on one end compared to the other. This design helps distribute the load more evenly across the idler, reducing the impact force on the conveyor belt when it encounters unevenly distributed or heavy loads.

Steel Construction: These idlers are constructed using high-quality steel material, ensuring strength, durability, and resistance to wear and tear. The robust construction allows them to withstand heavy loads and harsh operating conditions.

Impact Resistance: The 20U idlers are specifically designed to handle impact forces generated by heavy or irregularly shaped materials. They help absorb and dissipate the impact energy, protecting both the conveyor belt and the idler from damage.

Sealed Bearings: To enhance reliability and reduce maintenance needs, the 20U idlers are equipped with sealed bearings. Sealed bearings protect against contaminants such as dust, dirt, and moisture, ensuring smooth operation and prolonging the service life of the idlers.

Customizable Options: The 20U Unequal Steel Idlers can be customized to fit specific conveyor system requirements. They are available in various roll diameters, widths, and trough angles, allowing for customization based on load capacities and belt widths.

These idlers play a crucial role in providing support and minimizing the impact of uneven loads on conveyor belts, ensuring smooth and efficient operation of the conveyor system while extending its lifespan
