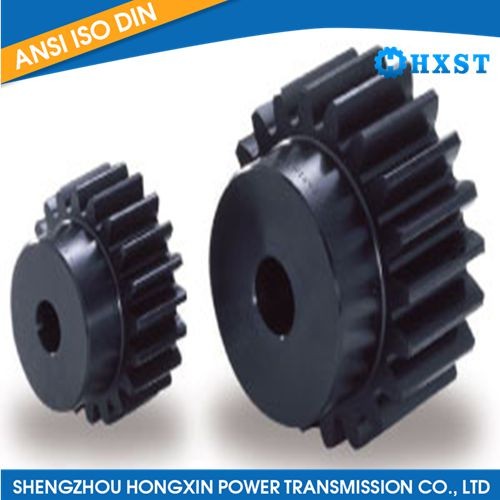

20DP Steel Stock Spur Gears 20°Pressure Angle

Product Item:HXST-1016

Model: 20DP Steel Stock Spur Gears 20°Pressure Angle

Diametral Pitch (DP): The 20DP specification indicates the number of teeth per inch of gear diameter. It represents the size or coarseness of the gear teeth. In this case, there are 20 teeth for every

Size Range: 20DP Steel Stock Spur Gears are available in a range of sizes, allowing for flexibility in gear selection based on the specific application requirements. The sizes typically range from

Application Versatility: These gears find application in a wide range of industries, including automotive, aerospace, robotics, industrial machinery, and more. They are used for power transmission

Description

20DP Steel Stock Spur Gears with a 20° Pressure Angle are a type of gear commonly used in mechanical systems. Here is some information about them:

DP: DP stands for Diametral Pitch, which is a unit used to measure the size and spacing of gear teeth. In this case, the gears have a Diametral Pitch of 20, meaning there are 20 teeth per inch of gear diameter.

Steel: These gears are made of steel, which is a strong and durable material commonly used in gear manufacturing. Steel gears are known for their high strength and resistance to wear and tear.

Spur Gears: Spur gears are a type of cylindrical gear with straight teeth that run parallel to the gear axis. They are designed to transmit motion and power between parallel shafts accurately and efficiently.

20° Pressure Angle: The pressure angle refers to the angle at which the gear teeth exert force on each other. A 20° pressure angle is a standard angle used in many gear designs. It determines the shape and profile of the gear teeth, allowing them to mesh smoothly and transmit power effectively.

These 20DP Steel Stock Spur Gears with a 20° Pressure Angle can be used in various applications, including machinery, automotive systems, industrial equipment, robotics, and more. They provide reliable and efficient power transmission in a wide range of mechanical systems.
