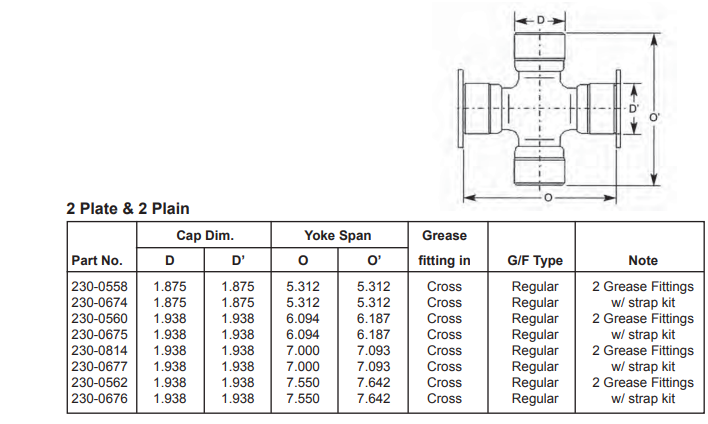

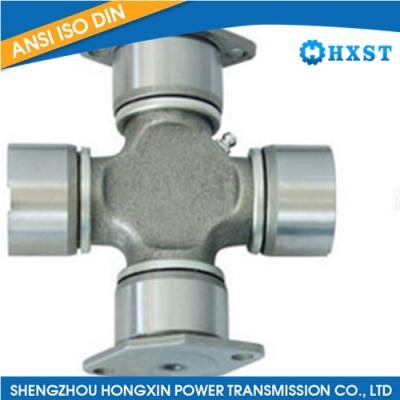

2 Plate & 2 Plain Universal Joint

Product Item:HXST-1809

Model: 2 Plate & 2 Plain Universal Joint

Material: Typically made from high-strength materials such as alloy steel or stainless steel to ensure durability and strength.

Misalignment Compensation: The 2-plate and 2-plain universal joint configuration allows for angular misalignment compensation between connected shafts, reducing stress and wear on the system

Lubrication: Proper lubrication is essential to reduce friction and wear within the universal joint. Lubrication points or fittings may be present to facilitate lubricant application

Description

A 2-plate and 2-plain universal joint is a specific type of mechanical joint used to transmit rotational motion between two shafts that are not aligned with each other. Here's an explanation of its components:

Plates: The plates, also called flanges or discs, are the main components of the universal joint. They typically have a circular shape with holes for mounting and connecting the shafts.

Plain Bearings: The plain bearings, also known as bushings or sleeves, are cylindrical components that fit into the holes of the plates. They allow for smooth rotation and flexibility within the joint.

The 2-plate and 2-plain universal joint operates by connecting two shafts at right angles to each other while allowing for angular misalignment and axial movement. The plates are connected by the plain bearings, which enable rotational movement between the shafts.

This type of universal joint is commonly used in various applications, such as steering systems, power transmission systems, and machinery. It provides flexibility, reliable operation, and efficient power transmission even when the connected shafts are not perfectly aligned.

Proper lubrication and maintenance are essential to ensure the longevity and optimal performance of the 2-plate and 2-plain universal joint. Additionally, it's important to consider the load capacity and operating conditions when selecting a suitable size and material for the universal joint to meet the specific requirements of the application.
