Product Item:HXST-053

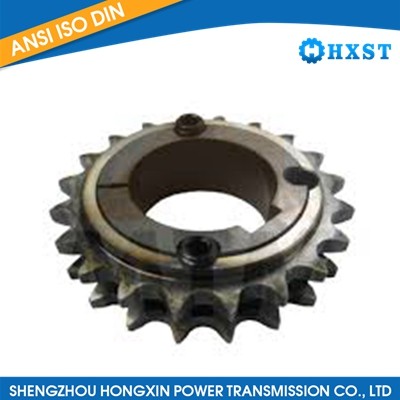

Model: 16B-2 Duplex Taper lock Sprocket
Material: C45, stainless steel, etc.
Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc
Package:Standard export case, individual package (neutral or colorbox) available.
|
No. of teeth |
pitch circle |
tip circle |
hub-dia. |
for |
total |
weight |
|
|
Ø |
Ø |
Ø | bush |
length |
approx |
||
|
d0 |
dk |
dn |
L |
kg |
|||
|
13 |
106,12 |
117,0 |
– |
2012 |
47,70 |
1,60 |
|
|
15 |
122,17 |
133,0 |
– |
2012 |
47,70 |
2,90 |
|
|
17 |
138,22 |
149,0 |
– |
2517 |
47,70 |
3,25 |
|
|
19 |
154,33 |
165,2 |
– |
2517 |
47,70 |
4,25 |
|
|
21 |
170,43 |
181,2 |
140 |
3020 |
51,00 |
6,50 |
|
|
23 |
186,53 |
197,5 |
140 |
3020 |
51,00 |
7,25 |
|
|
25 |
202,66 |
213,5 |
140 |
3020 |
51,00 |
8,80 |
|
|
27 |
218,79 |
229,6 |
140 |
3020 |
51,00 |
9,00 |
|
|
30 |
243,00 |
254,0 |
140 |
3020 |
51,00 |
16,80 |
|
|
38 |
307,59 |
320,7 |
140 |
3020 |
51,00 |
26,10 |
|
|
45 |
364,13 |
377,1 |
140 |
3020 |
51,00 |
35,00 |
|
|
57 |
461,07 |
474,0 |
175 |
3525 |
65,00 |
25,70 |
|
|
76 |
614,65 |
627,0 |
175 |
3525 |
65,00 |
37,00 |
|
|
95 |
768,22 |
781,1 |
215 |
3525 |
65,00 |
48,00 |
|
|
114 |
921,81 |
934,3 |
215 |
4040 |
102,00 |
78,00 |
|
