Product Item:HXST-055

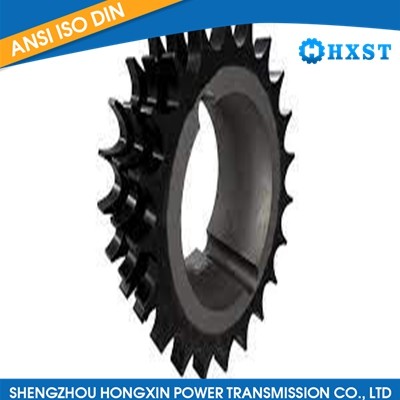

Model: 08B-3 Triplex Taper lock Sprocket
Material: C45, stainless steel, etc.
Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc
Package:Standard export case, individual package (neutral or colorbox) available.
|
No. of teeth |
pitch circle |
tip circle |
hub-dia. |
for |
total |
weight |
|
|
Ø |
Ø |
Ø |
bush |
length |
approx |
|
d0 |
dk |
dn |
L |
kg |
||
|
15 |
61,90 |
65,5 |
– |
1008 |
34,9 |
0,40 |
|
17 |
69,11 |
73,6 |
– |
1210 |
34,9 |
0,35 |
|
19 |
77,16 |
81,7 |
– |
1210 |
34,9 |
0,40 |
|
21 |
85,22 |
89,7 |
– |
1610 |
34,9 |
0,50 |
|
23 |
93,27 |
98,2 |
– |
1610 |
34,9 |
0,60 |
|
25 |
101,33 |
105,8 |
– |
2012 |
34,9 |
0,70 |
|
27 |
109,40 |
114,4 |
– |
2012 |
34,9 |
1,20 |
|
30 |
121,50 |
126,1 |
– |
2012 |
34,9 |
1,80 |
|
38 |
153,80 |
158,6 |
– |
2012 |
34,9 |
1,20 |
