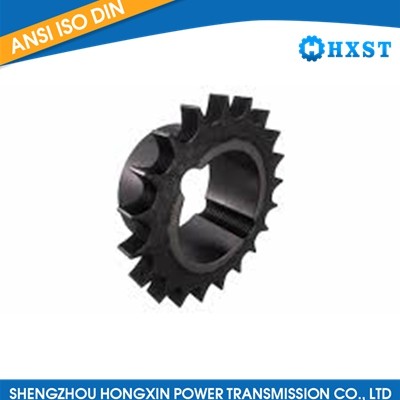

08B-1 Taper lock Sprocket
  1. 08B-1 Taper lock Sprocket

08B-1 Taper lock Sprocket

Product Item:HXST-044

Model: 08B-1 Taper lock Sprocket

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

08b-1 taper lock sprocket , sprocket taper lock bushing , sprocket taper lock
Send InquiryLive chat

Description

Simplex Taperlock sprockets 08B-1

  • ISO-No.: 08 B-1 (1/2“ x 5/16“)
  • pitch: 12,7 mm
  • inner width: 7,75 mm
  • roller-dia.: 8,51 mm
  • tooth width: 7,2 mm
  • ba 1,3 mm (radius width)
  • rx 13 mm (min. tooth radius)
No. of teeth pitch circle tip circle hub-dia. total length for
d do ND L bush
14 57,10 62,0 45 22 1008
15 61,90 65,5 45 22 1008
16 65,10 69,5 50 22 1108
17 69,11 73,6 60 25 1210
18 73,14 77,8 60 25 1210
19 77,16 81,7 63 25 1210
20 81,19 85,8 71 25 1610
21 85,22 89,7 71 25 1610
22 89,24 93,8 71 25 1610
23 93,27 98,2 76 25 1610
24 97,29 101,8 76 25 1610
25 101,33 105,8 76 25 1610
26 105,36 110,0 76 25 1610
27 109,40 114,4 76 25 1610
28 113,42 118,0 90 32 2012
30 121,50 126,1 90 32 2012
38 153,80 158,6 90 32 2012
Material: cast iron (GG-22)
45 182,07 188,0 100 32 2012
57 230,54 236,4 100 32 2012
76 307,33 313,3 100 32 2012
95 384,11 390,1 100 32 2012
114 460,90 466,9 110 45 2517
