Сварная стальная цепь
Сварная стальная буксирная цепь изготовлен в соответствии со стандартами ISO 6971 и ANSI B29.18M. Продукты обеспечивают эффективное и экономичное обслуживание при использовании на конвейерах для стружки и опилок и т.п. Имеется обратный ствол. Вложения включают C1, C3, C4, RR и Wing.

CHAIN NO.	Pitch		Dimension(mm)						Average Ultimate Strength kgf	Approx Weight kg/m
	P
	Inch	mm	A	B(max)	D	T	E(min)	F
WDH110-R	6.000	152.40	300.84	263.9	18.90	9.50	238.5	38.10	25000	16.7
WDH112-R	8.000	203.20	300.84	263.5	18.90	9.50	231.5	38.10	25000	14.8
WDH120-R	6.000	152.40	306.37	260.35	22.07	12.70	222.25	50.80	35800	24.6
WDH2210-R	6.136	155.85	300.84	263.5	18.90	9.50	236.5	38.10	25000	16.7
WDH480-R	8.000	203.20	370.19	323.85	22.07	12.70	285.75	50.80	35800	26.0
WDH116-R	8.000	203.20	396.00	358.8	18.90	9.50	325.8	44.45	25000	19.0

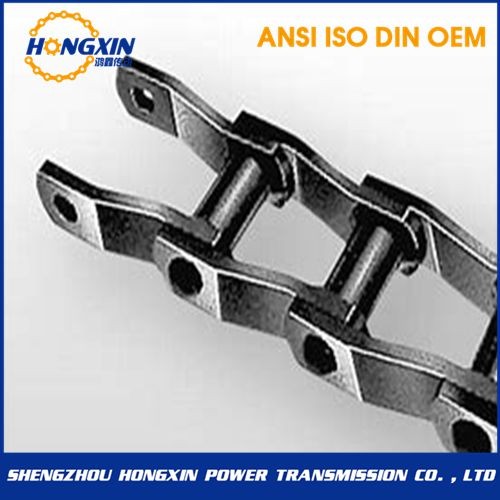

Welded Steel Mill Chain includes offset sidebar welded steel mill chain(or cranked link welded steel mill chain), straight sidebar welded steel mill chain and welded stainless steel mill chain as per ISO 6972 and ANSI B29.16M. These versatile welded steel chains are used throughout the forest products industry and paper processing industries as economical alternative for comparable cast chains. Manufactured with the most advanced techniques, equipment and high quality steels, these chains offer improved resistance to wear and shock loads for a broad range of applications of conveying, transmission and elevations. A variety of attachments are also available for different conveyor and elevator applications: A1, A2, A22, F2, F4, H1, H2, K1, K2, R1, RR1, R2, R22, W1.

CHAIN NO.	TYPE	Pitch		Dimension(mm)							Average Ultimate Strength kgf	Approx Weight kg/m
		P
		Inch	mm	A	B(max)	D	T	E(min)	F	G
WR78-R	A	2.609	66.27	77	50.80	12.70	6.40	28.60	28.40	22.2	9530	6.2
WH78-R	A	2.609	66.27	77	50.80	12.70	6.40	28.60	28.40	22.2	10918	6.2
WR82-R	A	3.075	78.10	86	57.0	14.29	6.40	31.80	32.00	27	10210	6.7
WH82-R	A	3.075	78.10	86	57.0	14.29	6.40	31.80	32.00	27	13380	6.7
WHX82HD-R	A	3.075	78.10	97	60.33	19.05	9.50	28.60	38.10	31.75	17240	12.7
WR124-R	A	4.000	101.60	110	70	19.05	9.50	41.30	38.10	36.6	17240	11.8
WH124-R	B	4.000	101.60	110	70	19.05	9.50	41.30	38.10	36.6	22900	11.8
WH124HD-R	B	4.063	103.20	128.4	76.5	25.25	12.70	41.20	50.80	44.45	36316	21.3
WHX124HD-R	B	4.063	103.20	128.4	76.5	25.25	12.70	41.20	50.80	44.45	55306	21.3
WH111-R	B	4.760	120.90	124	84.8	19.05	9.50	57.20	38.10	36.6	22860	11.6
WH106-R	B	6.000	152.40	110.49	70.61	19.05	9.50	41.30	38.10	36.6	22860	9.6
WH106HD-R	B	6.050	153.67	117	76.20	25.25	12.70	38.10	50.80	44.45	55290	17.4
WR132-R	B	6.050	153.67	157.4	111.76	25.25	12.70	72.90	50.80	44.45	28140	20
WH132-R	B	6.050	153.67	157.4	111.76	25.25	12.70	72.90	50.80	44.45	38580	20
WHX132-R	B	6.050	153.67	157.4	111.76	25.25	12.70	72.90	50.80	44.45	38580	20
WH150-R	B	6.050	153.67	162	111.76	25.25	12.70	72.90	63.50	44.45	38580	24
WH155-R	B	6.050	153.67	164.5	111.25	28.42	14.27	70.00	63.50	44.45	50000	26.9
WR157-R	B	6.050	153.67	173.6	117.35	28.52	15.88	72.90	63.50	44.45	56320	28.2
WH157-R	B	6.050	153.67	173.6	117.35	28.52	15.88	72.90	63.50	44.45	56320	28.2
WHX159-R	B	6.125	155.57	174	117.35	31.45	15.88	73.00	76.20	50.8	92724	37
