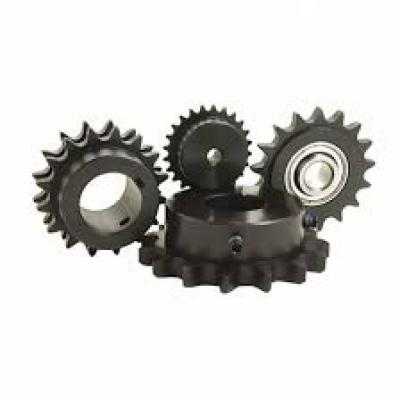

Sprocket product introduction

1. Product range ISO Sprocket 06B/08B/10B/12B/16B/20B/24B/28B/32B ANSI Sprocket 35/40/41/50/60/80/100/120/140/160/180 /200/240

2. Maximum processing diameter: φ=1450mm.

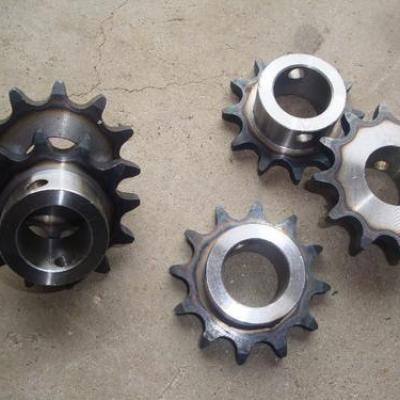

2.  Finished Bore Sprocket

1. Product Series 06B/08B/10B/12B/16B/20B

35/40/41//50/60/80/100/120/140/160

2. Maximum processing diameter: φ=1450mm.

Three.  Taper lock Sprocket

1. Product range 06B/08B/10B/12B/16B/20B 35/40/41//50/60/80/100/120/140/160

2. Maximum processing diameter: φ=1450mm. Maximum matching taper sleeve: 8065

4.QTL series cone sprocket

1. Product range 35/40/41//50/60/80/100/120/140/160/200

2. Maximum processing diameter: φ=1450mm. With maximum QD sleeve: N

Five. STL cone sprocket

1. Product series 35/40/41//50/60/80/100/120/140/160/200 2. Maximum processing diameter: φ=1450mm.

6. Use the largest Browning set: U2 casting sprocket

1. Product series 06B/08B/10B/12B/16B/20B/24B (process hole and BTL taper hole) and can process the finished hole according to user requirements.

2. Maximum processing diameter: φ=1450mm. Maximum matching taper sleeve: 5050

 Ball Bearing Idler Sprocket

1. Product range 06B/08B/10B/12B/16B 35/40/41/50/60/80




Large pitch Conveyor Sprocket

1. Product series P50/P75/P100/P50.8




Standard series BTL cone sprocket

1Products 06B/08B/10B/12B/16B/20B 35/40/50/60/80/100/120/140/160
