Тихая цепь

Продукт Товар:HXPT-301

Модель: Тихая Цепь

Материал: C45, нержавеющая сталь и т. д.

Обработка поверхности: закаленные зубы, черный оксид, оцинковка, электрофорез и т. д.

Упаковка: стандартный экспортный ящик, индивидуальная упаковка. (нейтральный или цветной ящик) доступный.

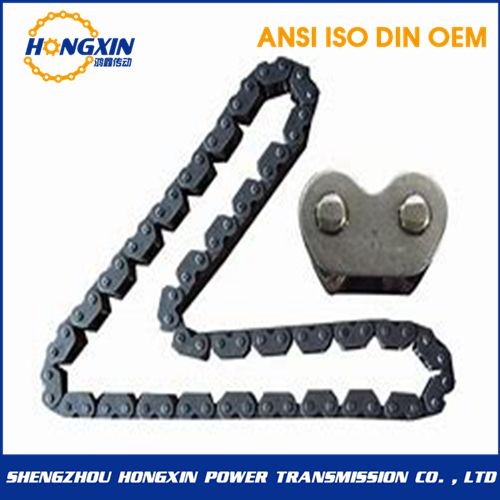

Бесшумная цепь
Бесшумная цепь (илиперевернутая зубчатая цепь) Изготовлен из отборной легированной стали, прошел строгую термическую обработку и предварительно смазан специальным маслом для цепи. Обладает легким весом, бесшумностью, лучшей износостойкостью и высокой прочностью на разрыв. Наша бесшумная цепь экспортируется японским производителям мотоциклов. Средний срок службы цепи с перевернутыми зубьями составляет более 30 000 километров, а то и больше.

CHAIN NO.	TYPE	Locing	Pitch	Width	Pin		Plate			Average Ultimate Strength kgf
CHAIN NO.	TYPE	Locing	P	W	D	L	H	T1	T2	Average Ultimate Strength kgf
C700	A	4 x 4	7.62	7.85	3.00	11.6	8.96	1.03	1.28	1429
26289/ 26290/ 776968	A	4 x 4	9.525	9.30	3.78	13.2	9.84	1.03	1.53	1900
C387	A	4 x 4	9.525	9.30	3.78	13.2	9.76	1.03	1.53	1684
C390	A	4 x 4	9.525	9.30	3.78	13.2	9.85	1.03	1.53	1900
C391	A	4 x 4	9.525	9.60	3.78	14.1	9.96	1.60	1.60	1700
C358/C396	A	4 x 5	9.525	10.80	3.92	15.4	9.86	1.33	1.53	1531
C372	A	4 x 5	9.525	10.80	3.35	15.8	9.31	1.53	1.53	1531
C392	A	4 x 5	9.525	10.80	3.78	14.7	11.19	1.03	1.53	1531
C351	A	5 x 6	9.525	13.80	3.35	19.0	9.31	1.53	1.53	1633
C368/C366/ C376/C3077/ C359	A	5 x 6	9.525	13.80	3.92	18.5	9.86	1.33	1.53	1850
C370/C374	A	5 x 6	9.525	13.80	3.35	19.0	9.70	1.53	1.53	1847
C373	A	5 x 6	9.525	14.00	3.96	18.6	9.84	1.33	1.53	1850
C382	A	5 x 6	9.525	14.40	3.78	19.6	9.96	1.60	1.60	2097
C395	A	6 x 5	9.525	14.00	3.35	19.0	9.31	1.53	1.53	1847
C499/C498	A	4 x 5	12.70	10.80	3.92	15.4	11.43	1.33	1.53	1878
C509	A	4 x 5	12.70	10.80	3.92	15.8	11.90	1.53	1.53	1847
C497/TC495	A	5 x 6	12.70	13.80	3.92	19.0	11.43	1.53	1.53	2296
C505	A	5 x 6	12.70	13.80	3.92	19.0	12.00	1.53	1.53	2296
C495	A	6 x 5	12.70	13.80	3.92	19.0	11.43	1.53	1.53	2296

CHAIN NO.	TYPE	Locing	Pitch	Width	Pin		Plate			Average Ultimate Strength kgf
CHAIN NO.	TYPE	Locing	P	W	D(max)	L	H	T1	T2	Average Ultimate Strength kgf
C511	B	4 x 3	8.00	6.57	3.00	10.4	9.40	1.03	1.28	1000
C510	B	4 x 4	8.00	7.85	3.00	11.7	9.40	1.03	1.28	1143

CHAIN NO.	TYPE	Locing	Pitch	Width	Pin		Plate			Average Ultimate Strength kgf
CHAIN NO.	TYPE	Locing	P	W(min)	D(max)	L	H	T1	T2	Average Ultimate Strength kgf
C385	C	4 x 5	9.525	10.80	3.35	15.8	10.20	1.53	1.53	2000
C362	C	5 x 6	9.525	13.80	3.35	19.0	10.20	1.53	1.53	2449
C388	C	5 x 6	9.525	13.80	3.35	19.0	10.20	1.53	1.53	2449
C380	C	6 x 5	9.525	13.80	3.35	19.0	10.20	1.53	1.53	2449
C364	C	7 x 6	9.525	16.90	3.35	22.1	10.20	1.53	1.53	2515

CHAIN NO.	TYPE	Locing	Pitch	Width	Pin		Plate			Average Ultimate Strength kgf
CHAIN NO.	TYPE	Locing	P	W(min)	D(max)	L	H	T1	T2	Average Ultimate Strength kgf
C381A	D	4 x 4	8.20	8.15	3.00	11.9	8.50	1.03	1.33	1531
C393/C394	D	4 x 5	8.20	9.20	3.00	13.1	8.60	1.03	1.30	1531
C383	D	4 x 4	9.525	8.10	3.92	13.3	10.85	1.53	1.33	1701
C384	D	4 x 4	9.525	8.10	3.92	13.3	10.85	1.53	1.33	1701
C384A	D	4 x 4	9.525	7.80	4.09	12.9	10.90	1.53	1.28	1633

CHAIN NO.	TYPE	Locing	Pitch	Width	Pin		Plate			Average Ultimate Strength kgf
CHAIN NO.	TYPE	Locing	P	W(min)	D(max)	L	H	T1	T2	Average Ultimate Strength kgf
C397/ 4663635	H	6 x 5	9.525	17.15	3.47	20.25	11.15	1.53	1.53	2700

CHAIN NO.	TYPE	Locing	Pitch	Width	Pin		LinkPlate			Average Ultimate Strength kgf
CHAIN NO.	TYPE	Locing	P(mm)	W(min)	D(max)	L	H(max)	T1/(T3)	T2/(T4)	Average Ultimate Strength kgf
SCR04-5	F	3x2	6.35	3.15	2.50	6.20	6.88	0.8	1.0	630
SCR04-7	F	4x3	6.35	5.25	2.50	8.25	6.88	0.8	1.0	900
SCR04-7(T)	F	4x3	6.35	5.25	2.50	8.75	6.68	1.0	1.0	920
776266	F	5x4	6.35	7.25	2.50	10.50	6.88	0.83	1.03	1224
C762	F	5x4	6.35	7.90	2.40	11.00	6.70	0.83/(1.23)	1.23/(1.03)	1224
J35R	F	5x4	6.35	8.75	2.40	11.90	6.88	0.83	1.23	1224

CHAIN NO.	TYPE	Locing	Pitch	Width	Pin		LinkPlate			Average Ultimate Strength kgf
CHAIN NO.	TYPE	Locing	P(mm)	W(min)	D(max)	L	H(max)	T1/(T3)	T2	Average Ultimate Strength kgf
SCA04-5	G	3x2	6.35	3.15	2.50	6.20	6.88	0.8	1.0	630
J35E	G	4x3	6.35	6.30	2.70	9.40	7.12	0.83/(1,03)	1.40	920
NS250	G	4x3	6.35	6.30	2.70	9.40	6.90	0.83/(1.03)	1.38	920
SCA04-7	G	4x3	6.35	5.25	2.50	8.25	6.88	0.8	1.0	900
SCA04-7(T)	G	4x3	6.35	5.25	2.50	8.75	6.88	1.0	1.0	920
SCA04-8	G	4x4	6.35	6.20	2.50	9.70	6.88	1.0	1.0	1110
SCA0412H	G	4x4	6.35	7.40	2.70	11.30	6.88	1.2	1.2	1224
DH113	G	4x5	6.35	8.80	2.50	12.70	7.03	1.23	1.23	1224
SCA04-9	G	5x4	6.35	7.25	2.50	11.00	6.88	1.0	1.0	1224
SCA04H-9	G	5x4	6.35	8.78	2.70	11.90	6.90	0.83/(1.03)	1.38	1224

CHAIN NO.	TYPE	Locing	Pitch	Width	Pin		LinkPlate			Average Ultimate Strength kgf
CHAIN NO.	TYPE	Locing	P(mm)	W(min)	D(max)	L	H(max)	T1	T2	Average Ultimate Strength kgf
C7168/NS750	E	5x4	6.35	8.75	2.40	12.30	6.88	1.03	1.38	1224
I3028-8U300	E	5x4	6.35	8.75	2.40	12.30	6.88	1.03	1.38	1224
J35B	E	5x4	6.35	8.75	2.40	12.30	6.88	1.03	1.23	1224

CHAIN NO.	TYPE	Locing	Pitch	Width	Pin		LinkPlate			Average Ultimate Strength kgf
CHAIN NO.	TYPE	Locing	P(mm)	W(min)	D(max)	L	H(max)	T1	T2/(T3)	Average Ultimate Strength kgf
J35D	J	6x5	6.35	11.20	2.40	15.40	8.0	1.38	1.38/(1.03)	1531
