Продукт Товар:HXPT-214

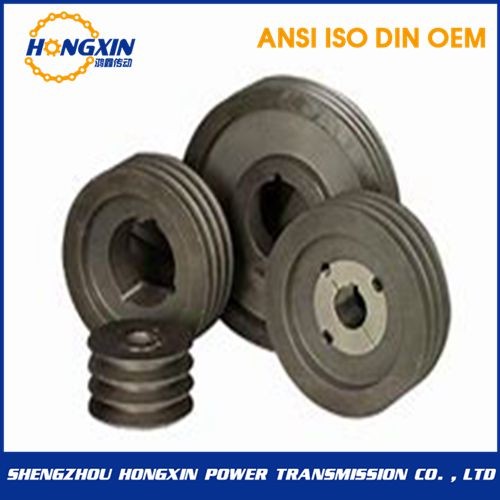

Model:SPC-6 Taper Bore Pulley
Material: C45, stainless steel, etc.
Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc
Package:Standard export case, individual package (neutral or colorbox) available.
| PART NO. | P.D | O.D | TYPE | BUSH NO. | MAX BORE | E | F | J | K | L | M | N |
| spc 200-6 | 200.0 | 209.6 | 3 | 3535 | 90 | - | 162 | 148 | 36.5 | 89 | 36.5 | - |
| spc 212-6 | 212.0 | 221.6 | 3 | 3535 | 90 | - | 162 | 160 | 36.5 | 89 | 36.5 | - |
| spc 224-6 | 224.0 | 233.6 | 3 | 3535 | 90 | - | 162 | 173 | 36.5 | 89 | 36.5 | - |
| spc 236-6 | 236.0 | 245.6 | 3 | 3535 | 90 | - | 162 | 185 | 36.5 | 89 | 36.5 | - |
| spc 250-6 | 250.0 | 259.6 | 3 | 3535 | 90 | - | 162 | 198 | 36.5 | 89 | 36.5 | - |
| spc 265-6 | 265.0 | 274.6 | 3 | 3535 | 90 | - | 162 | 213 | 36.5 | 89 | 36.5 | - |
| spc 280-6 | 280.0 | 289.6 | 3 | 3535 | 90 | - | 162 | 228 | 36.5 | 89 | 36.5 | - |
| spc 300-6 | 300.0 | 309.6 | 6 | 3535 | 90 | 20 | 162 | 247 | 36.5 | 89 | 36.5 | 170 |
| spc 315-6 | 315.0 | 324.6 | 6 | 3535 | 90 | 20 | 162 | 264 | 36.5 | 89 | 36.5 | 170 |
| spc 335-6 | 335.0 | 344.6 | 6 | 3535 | 90 | 20 | 162 | 280 | 36.5 | 89 | 36.5 | 170 |
| spc 355-6 | 355.0 | 364.6 | 6 | 3535 | 90 | 20 | 162 | 304 | 36.5 | 89 | 36.5 | 170 |
| spc 375-6 | 375.0 | 384.6 | 6 | 4040 | 100 | 20 | 162 | 324 | 30 | 102 | 30 | 200 |
| spc 400-6 | 400.0 | 409.6 | 6 | 4040 | 100 | 20 | 162 | 348 | 30 | 102 | 30 | 200 |
| spc 425-6 | 425.0 | 434.6 | 6 | 4545 | 110 | 30 | 162 | 369 | 24 | 114 | 24 | 225 |
| spc 450-6 | 450.0 | 459.6 | 6 | 4545 | 110 | 30 | 162 | 394 | 24 | 114 | 24 | 225 |
| spc 475-6 | 475.0 | 484.6 | 6 | 4545 | 110 | 30 | 162 | 419 | 24 | 114 | 24 | 225 |
| spc 500-6 | 500.0 | 509.6 | 5 | 4545 | 110 | 30 | 162 | 444 | 24 | 114 | 24 | 225 |
| spc 530-6 | 530.0 | 539.6 | 5 | 4545 | 110 | 30 | 162 | 474 | 24 | 114 | 24 | 225 |
| spc 560-6 | 560.0 | 569.6 | 5 | 5050 | 125 | - | 162 | 504 | 17.5 | 127 | 17.5 | 245 |
| spc 630-6 | 630.0 | 639.6 | 5 | 5050 | 125 | - | 162 | 574 | 17.5 | 127 | 17.5 | 245 |
| spc 710-6 | 710.0 | 719.6 | 5 | 5050 | 125 | - | 162 | 656 | 17.5 | 127 | 17.5 | 245 |
| spc 800-6 | 800.0 | 809.6 | 5 | 5050 | 125 | - | 162 | 737 | 17.5 | 127 | 17.5 | 245 |
| spc 1000-6 | 1000.0 | 1009.6 | 5 | 5050 | 125 | - | 162 | 937 | 17.5 | 127 | 17.5 | 245 |
| spc 1250-6 | 1250.0 | 1259.6 | 5 | 5050 | 125 | - | 162 | 1187 | 17.5 | 127 | 17.5 | 245 |
