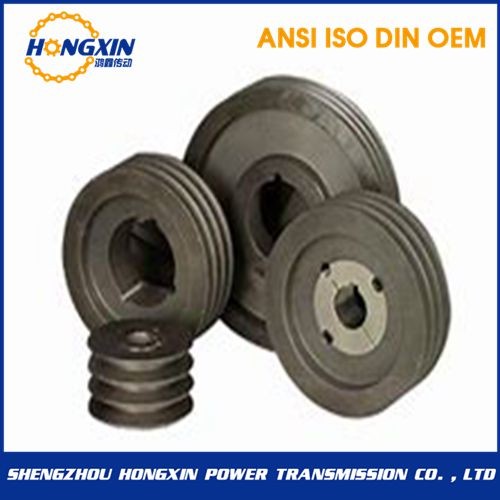

SPA-3 Taper Bore Pulley
  1. SPA-3 Taper Bore Pulley

SPA-3 Taper Bore Pulley

Продукт Товар:HXPT-199

Model:SPA-3 Taper Bore Pulley

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

SPA-3 Taper Bore Pulley
Отправить запрос Живой чат

Описание

Product details

TAPER BORE PULLEYS SPA-3

SPA-3

PART NO. P.D O.D TYPE BUSH NO. MAX BORE E F J K L M N
spa 71-3 71.0 76.5 8 1108 28 - 50 40 28 22 - -
spa 75-3 75.0 80.5 8 1210 32 - 50 44 25 25 - -
spa 80-3 80.0 85.5 8 1210 32 - 50 47 25 25 - -
spa 85-3 85.0 90.5 8 1210 32 - 50 50 25 25 - -
spa 90-3 90.0 95.5 8 1610 42 - 50 60 25 25 - -
spa 95-3 95.0 100.5 8 1610 42 - 50 64 25 25 - -
spa 100-3 100.0 105.5 2 1610 42 - 50 70 - 25 25 -
spa 106-3 106.0 111.5 2 1610 42 - 50 76 - 25 25 -
spa 112-3 112.0 117.5 8 2012 50 - 50 83 18 32 - -
spa 118-3 118.0 123.5 2 2012 50 - 50 86 - 32 18 -
spa 125-3 125.0 130.5 2 2012 50 - 50 92 - 32 18 -
spa 132-3 132.0 137.5 2 2012 50 - 50 98 - 32 18 -
spa 140-3 140.0 145.5 8 2517 60 - 50 106 5 45 - -
spa 150-3 150.0 155.5 8 2517 60 - 50 116 5 45 - -
spa 160-3 160.0 165.5 8 2517 60 - 50 126 5 45 - -
spa 170-3 170.0 175.5 8 2517 60 - 50 138 5 45 - -
spa 180-3 180.0 185.5 8 2517 60 - 50 146 5 45 - -
spa 190-3 190.0 195.5 8 2517 60 - 50 158 5 45 - -
spa 200-3 200.0 205.5 6 2517 60 20 50 165 2.5 45 2.5 120
spa 224-3 224.0 229.5 6 2517 60 20 50 189 2.5 45 2.5 120
spa 250-3 250.0 255.5 6 2517 60 20 50 215 2.5 45 2.5 120
spa 280-3 280.0 285.5 6 2517 60 20 50 245 2.5 45 2.5 120
spa 315-3 315.0 320.5 7 3020 75 25 50 280 0.5 51 0.5 150
spa 355-3 355.0 360.5 4 3020 75 - 50 320 0.5 51 0.5 160
spa 400-3 400.0 405.5 4 3020 75 - 50 365 0.5 51 0.5 150
spa 450-3 450.0 455.5 4 3020 75 - 50 415 0.5 51 0.5 150
spa 500-3 500.0 505.5 4 3020 75 - 50 465 0.5 51 0.5 150
spa 560-3 560.0 565.5 4 3020 75 - 50 525 0.5 51 0.5 150
spa 630-3 630.0 635.5 4 3020 75 - 50 595 0.5 51 0.5 150
spa 800-3 800.0 805.5 4 3535 90 - 50 765 20 89 20 170
spa 1000-3 1000.0 1005.5 4 3535 90 - 50 965 20 89 20 178
