Продукт Товар:HXPT-146

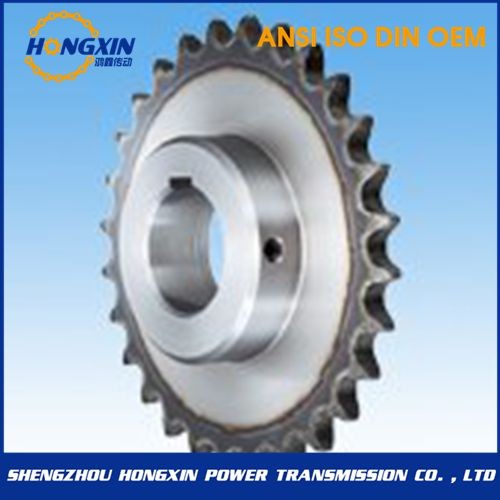

Модель: Звездочка с готовым отверстием NK 35B
Материал: C45, нержавеющая сталь и т. д.
Обработка поверхности: закаленные зубы, черный оксид, оцинковка, электрофорез и т. д.
Упаковка: стандартный экспортный ящик, индивидуальная упаковка. (нейтральный или цветной ящик) доступный.
|
|
Outside Dia Do |
Pitch Dia Dp |
Length Thru Bore |
Sprocket No. |
Finished Bores Includes Keyway and Setscrew |
Weight Lbs. (App.) |
|
| BL | Type | Teeth | ||||
| 1.258 | 1.097 | 3/4 | FB35B | 9 |
3/8
|
0.10 |
| 1.379 | 1.214 | 3/4 | 10 |
3/8, 1/2, 5/8
|
0.11 | |
| 1.502 | 1.331 | 3/4 | 11 |
3/8, 1/2, 5/8, 3/4
|
0.15 | |
| 1.625 | 1.449 | 3/4 | 12 | 1/2, 5/8, 3/4 | 0.18 | |
| 1.746 | 1.567 | 3/4 | 13 | 1/2, 5/8, 3/4 | 0.20 | |
| 1.868 | 1.685 | 3/4 | 14 | 1/2, 5/8, 3/4 | 0.22 | |
| 1.989 | 1.804 | 3/4 | 15 |
1/2, 5/8, 3/4, 1
|
0.24 | |
| 2.110 | 1.922 | 3/4 | 16 |
1/2, 5/8, 3/4, 1
|
0.29 | |
| 2.231 | 2.041 | 3/4 | 17 | 1/2, 5/8, 3/4, 1 | 0.36 | |
| 2.352 | 2.160 | 3/4 | 18 | 1/2, 5/8, 3/4, 1 | 0.39 | |
| 2.472 | 2.279 | 3/4 | 19 | 1/2, 5/8, 3/4, 1 | 0.44 | |
| 2.593 | 2.397 | 3/4 | 20 | 1/2, 5/8, 3/4, 1 | 0.51 | |
| 2.713 | 2.516 | 7/8 | 21 | 1/2, 5/8, 3/4, 1 | 0.75 | |
| 2.833 | 2.635 | 7/8 | 22 | 1/2, 5/8, 3/4, 1 | 0.78 | |
| 2.954 | 2.754 | 7/8 | 23 | 1/2, 5/8, 3/4, 1 | 0.78 | |
| 3.074 | 2.873 | 7/8 | 24 | 1/2, 5/8, 3/4, 1 | 0.79 | |
| 3.194 | 2.992 | 7/8 | 25 | 1/2, 5/8, 3/4, 1 | 0.80 | |
| 3.314 | 3.111 | 7/8 | 26 | 5/8, 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4 | 0.84 | |
| 3.434 | 3.230 | 7/8 | 27 | 5/8, 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4 | 0.88 | |
| 3.553 | 3.349 | 7/8 | 28 | 5/8, 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4 | 0.86 | |
| 3.793 | 3.588 | 7/8 | 30 | 5/8, 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4 | 0.96 | |
| 4.032 | 3.826 | 7/8 | 32 | 5/8, 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4 | 1.14 | |
| 4.392 | 4.184 | 1 | 35 | 5/8, 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4 | 1.38 | |
| 4.511 | 4.303 | 1 | 36 | 5/8, 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4 | 1.41 | |
| 4.990 | 4.780 | 1 | 40 | 5/8, 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4 | 1.56 | |
| 5.229 | 5.018 | 1 | 42 | 5/8, 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4 | 1.64 | |
| 5.588 | 5.376 | 1 | 45 | 5/8, 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4 | 1.74 | |
| 5.946 | 5.734 | 1 | 48 | 5/8, 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4 | 1.86 | |
| 6.663 | 6.449 | 1 | 54 | 5/8, 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4 | 1.98 | |
| 7.380 | 7.165 | 1 | 60 | 5/8, 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4 | 2.34 | |
| 8.575 | 8.358 | 1 | 70 | 5/8, 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4 | 3.14 | |
| 8.814 | 8.597 | 1 | 72 | 5/8, 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4 | 3.30 | |
| 9.770 | 9.552 | 1 | 80 | 5/8, 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4 | 3.94 | |
| 10.247 | 10.029 | 1 | 84 | 5/8, 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4 | 4.26 | |
| 11.680 | 11.461 | 1 | 96 | 5/8, 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4 | 5.22 | |
| 13.590 | 13.371 | 1 | 112 | 5/8, 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4 | 6.50 | |
