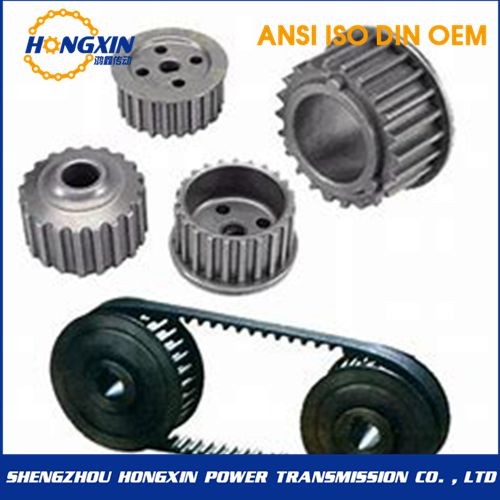

HTP 14M-40 Timing Pulley

Продукт Товар:HXPT-264

Model:HTP 14M-40 Timing Pulley

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

Timing PulleyS HTP 14M-40

14M
PITCH - 14 mm
FOR BELT WIDTH - 40 mm

Code	Type	Material	Teeth	dp	de	Df	Dm	Di	F	L	d	n◦ flange
Code	Type	Material	Teeth	dp	de	Df	Dm	Di	F	L	d	n◦ flange
28 14M 40	2F	St	28	124.78	122.12	127	100		54	69	24	400
30 14M 40	2F	St	30	133.69	130.99	138	100		54	69	24	401
32 14M 40	2F	St	32	142.6	139.88	154	100		54	69	24	403
34 14M 40	2F	St	34	151.52	148.79	160	100		54	69	24	404
36 14M 40	2F	St	36	160.43	157.68	168	100		54	69	24	405
38 14M 40	2F	St	38	169.34	166.6	183	120		54	69	24	406
40 14M 40	2F	St	40	178.25	175.49	188	120		54	69	24	407
44 14M 40	2F	St	44	196.08	193.28	211	120		54	69	24	411
48 14M 40	3F	GG	48	213.9	211.11	226	135	170	54	69	24	412
56 14M 40	3F	GG	56	249.55	246.76	256	135	207	54	69	28	416
64 14M 40	3F	GG	64	285.21	282.41	296	135	240	54	69	28	418
72 14M 40	5	GG	72	320.86	318.06		135	278	54	69	28
80 14M 40	5	GG	80	356.51	353.71		135	314	54	69	28
90 14M 40	5	GG	90	401.07	398.28		135	358	54	69	28
112 14M 40	5	GG	112	499.11	496.32		135	456	54	69	28
144 14M 40	5	GG	144	641.71	638.92		135	600	54	69	28
168 14M 40	5	GG	168	748.66	745.87		135	706	54	69	28
192 14M 40	5	GG	192	855.62	852.82		135	813	54	69	28
