Cotter Type Chain

Продукт Товар:HXPT-289

Model:Cotter Type Chain

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

Описание

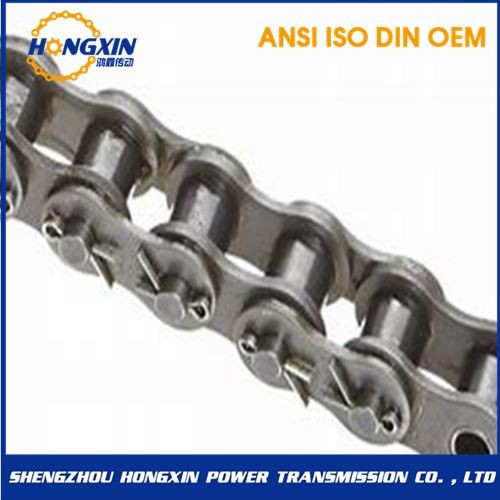

Cotter type chain

Cotter type chain is different from riveted type chain.It is the cottered construction.For example,the specification is expressed like this:50-C,60-C,and 80-C etc.The word “C” stand for cotter.

CHAIN NO. Pitch Width Roller Plate Pin Transverse
Pitch Average
Ultimate
Strength
kgf Approx Weight
kg/m

P W Dia Height Thickness Dia Lengths

inch mm mm R H1 H2 T1 T2 D F G1 C

50-C 5/8" 15.875 9.53 10.16 13.00 14.80 2.00 2.00 5.06 10.10 12.60 --- 3100 1.01

50-2C 5/8" 15.875 9.53 10.16 13.00 14.80 2.00 2.00 5.06 19.20 21.10 18.10 6200 2.04

50-3C 5/8" 15.875 9.53 10.16 13.00 14.80 2.00 2.00 5.06 28.30 30.20 18.10 9300 3.05

50H-C 5/8" 15.875 9.53 10.16 13.00 14.80 2.40 2.40 5.06 10.90 12.90 --- 3100 1.12

50H-2C 5/8" 15.875 9.53 10.16 13.00 14.80 2.40 2.40 5.06 20.65 22.75 19.60 6200 2.25

60-C 3/4" 19.05 12.70 11.91 15.50 17.50 2.40 2.40 5.95 12.50 15.40 --- 4400 1.44

60-2C 3/4" 19.05 12.70 11.91 15.50 17.50 2.40 2.40 5.95 24.00 26.90 22.80 8800 3.03

60-3C 3/4" 19.05 12.70 11.91 15.50 17.50 2.40 2.40 5.95 35.35 37.65 22.80 13200 4.50

60H-C 3/4" 19.05 12.70 11.91 15.50 17.50 3.10 3.10 5.95 14.10 15.70 --- 4400 1.81

60H-2C 3/4" 19.05 12.70 11.91 15.50 17.50 3.10 3.10 5.95 27.20 29.70 26.11 8800 3.68

60H-3C 3/4" 19.05 12.70 11.91 15.50 17.50 3.10 3.10 5.95 40.20 42.70 26.11 13200 5.20

80-C 1" 25.40 15.88 15.88 20.40 24.00 3.10 3.10 7.94 16.10 18.80 --- 7800 2.40

80-2C 1" 25.40 15.88 15.88 20.40 24.00 3.10 3.10 7.94 30.60 33.60 29.30 15600 5.26

80-3C 1" 25.40 15.88 15.88 20.40 24.00 3.10 3.10 7.94 45.30 48.00 29.30 23400 7.80

80H-C 1" 25.40 15.88 15.88 20.80 24.00 3.90 3.90 7.94 17.90 20.80 --- 8000 2.95

80H-2C 1" 25.40 15.88 15.88 20.80 24.00 3.90 3.90 7.94 34.20 37.10 32.59 16000 5.92

80H-3C 1" 25.40 15.88 15.88 20.80 24.00 3.90 3.90 7.94 50.50 53.40 32.59 24000 8.41

100-C 1-1/4" 31.75 19.05 19.05 24.80 30.10 3.90 3.90 9.52 20.10 23.10 --- 11800 3.74

100-2C 1-1/4" 31.75 19.05 19.05 24.80 30.10 3.90 3.90 9.52 38.00 41.00 35.80 23600 7.51

100-3C 1-1/4" 31.75 19.05 19.05 24.80 30.10 3.90 3.90 9.52 55.90 58.90 35.80 35400 11.20

100H-C 1-1/4" 31.75 19.05 19.05 24.80 30.10 4.70 4.70 9.52 21.70 24.90 --- 12000 4.45

100H-2C 1-1/4" 31.75 19.05 19.05 24.80 30.10 4.70 4.70 9.52 41.25 44.45 39.09 24000 8.34

100H-3C 1-1/4" 31.75 19.05 19.05 24.80 30.10 4.70 4.70 9.52 60.80 64.00 39.09 36000 12.72

120-C 1-1/2" 38.10 25.40 22.23 30.00 35.00 4.70 4.70 11.10 25.20 28.60 --- 15500 6.18

120-2C 1-1/2" 38.10 25.40 22.23 30.00 35.00 4.70 4.70 11.10 47.90 51.30 45.40 31000 12.25

120-3C 1-1/2" 38.10 25.40 22.23 30.00 35.00 4.70 4.70 11.10 70.60 74.00 45.40 46500 18.30

120H-CP 1-1/2" 38.10 25.40 22.23 30.00 35.00 5.60 5.60 11.10 26.98 30.57 --- 16000 6.78

120H-2C 1-1/2" 38.10 25.40 22.23 30.00 35.00 5.60 5.60 11.10 51.40 55.05 48.90 32000 13.45

120H-3C 1-1/2" 38.10 25.40 22.23 30.00 35.00 5.60 5.60 11.10 75.90 79.45 48.90 48000 20.13

140-CP 1-3/4" 44.45 25.40 25.40 36.20 42.00 5.60 5.60 12.70 27.30 31.50 --- 21500 7.49

140-2C 1-3/4" 44.45 25.40 25.40 36.20 42.00 5.60 5.60 12.70 51.75 55.95 48.90 43000 14.83

140-3C 1-3/4" 44.45 25.40 25.40 36.20 42.00 5.60 5.60 12.70 76.20 80.40 48.90 64500 22.20

140H-C 1-3/4" 44.45 25.40 25.40 36.20 42.00 6.40 6.40 12.70 28.90 33.10 --- 21500 8.12

140H-2C 1-3/4" 44.45 25.40 25.40 36.20 42.00 6.40 6.40 12.70 55.15 59.05 52.20 43000 16.10

140H-3C 1-3/4" 44.45 25.40 25.40 36.20 42.00 6.40 6.40 12.70 88.10 85.30 52.20 64500 24.02

160-C 2" 50.80 31.75 28.58 41.40 48.00 6.40 6.40 14.28 32.55 37.25 --- 27500 10.10

160-2C 2" 50.80 31.75 28.58 41.40 48.00 6.40 6.40 14.28 61.80 66.50 58.50 55000 20.04

160-3C 2" 50.80 31.75 28.58 41.40 48.00 6.40 6.40 14.28 91.05 95.75 58.50 82500 30.02

160H-C 2" 50.80 31.75 28.58 41.40 48.00 7.20 7.20 14.28 34.15 38.85 --- 27500 10.87

160H-2C 2" 50.80 31.75 28.58 41.40 48.00 7.20 7.20 14.28 65.10 69.80 61.90 55000 20.85

160H-3C 2" 50.80 31.75 28.58 41.40 48.00 7.20 7.20 14.28 96.05 100.75 61.90 82500 30.83

180-C 2-1/4" 57.15 35.71 35.71 46.70 54.20 7.20 7.20 17.45 36.50 42.20 --- 36000 13.40

180-2C 2-1/4" 57.15 35.71 35.71 46.70 54.20 7.20 7.20 17.45 69.42 75.12 65.84 72000 26.20

180-3C 2-1/4" 57.15 35.71 35.71 46.70 54.20 7.20 7.20 17.45 102.34 108.04 65.84 108000 38.10

180H-C 2-1/4" 57.15 35.71 35.71 46.70 54.20 8.00 8.00 17.45 38.10 43.80 --- 36000 15.20

180H-2C 2-1/4" 57.15 35.71 35.71 46.70 54.20 8.00 8.00 17.45 72.68 78.38 69.16 72000 30.10

180H-3C 2-1/4" 57.15 35.71 35.71 46.70 54.20 8.00 8.00 17.45 107.26 112.96 69.16 108000 45.00
