Продукт Товар:HXPT-156

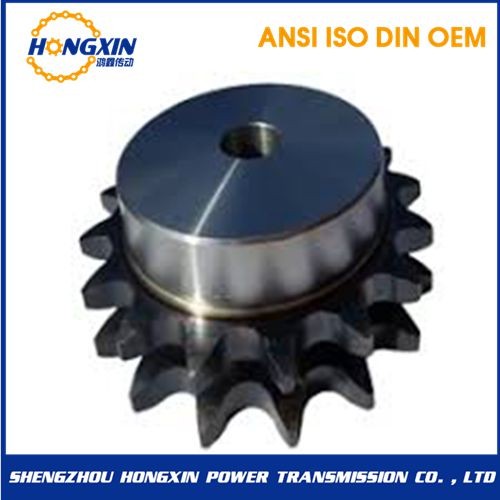

Модель:80B-2 NK Двойная звездочка
Материал: C45, нержавеющая сталь и т. д.
Обработка поверхности: закаленные зубы, черный оксид, оцинковка, электрофорез и т. д.
Упаковка: стандартный экспортный ящик, индивидуальная упаковка. (нейтральный или цветной ящик) доступный.
|
No. Teeth |
Outside Diameter Do |
Bore (Inches) | Hub (Inches) |
Weight Lbs. (App) |
||
|
Stock d |
Rec. Max. |
Dia. BD |
Length Thru BL |
|||
| 10 | 3.680 | 1 | 1 1/2 | 2 9/16* | 2 3/4 | 3.6 |
| 11 | 4.010 | 1 | 1 3/4 | 2 1/2 | 2 1/2 | 4.0 |
| 12 | 4.330 | 1 | 1 7/8 | 2 27/32 | 2 1/2 | 5.1 |
| 13 | 4.660 | 1 | 2 1/4 | 3 5/32 | 2 1/2 | 6.3 |
| 14 | 4.980 | 1 | 2 3/8 | 3 15/32 | 2 1/2 | 7.6 |
| 15 | 5.300 | 1 | 2 1/2 | 3 51/64 | 2 1/2 | 9.0 |
| 16 | 5.630 | 1 | 2 3/4 | 4 | 2 3/4 | 11.0 |
| 17 | 5.950 | 1 | 3 | 4 47/64 | 2 3/4 | 13.2 |
| 18 | 6.270 | 1 | 3 1/4 | 5 | 2 3/4 | 15.0 |
| 19 | 6.590 | 1 | 3 5/16 | 5 | 2 3/4 | 17.0 |
| 20 | 6.910 | 1 | 3 5/16 | 5 | 2 3/4 | 18.2 |
| 21 | 7.240 | 1 | 3 5/16 | 5 | 2 3/4 | 19.6 |
| 22 | 7.560 | 1 | 3 5/16 | 5 | 2 3/4 | 21.0 |
| 23 | 7.880 | 1 | 3 5/16 | 5 | 2 3/4 | 22.8 |
| 24 | 8.200 | 1 | 3 1/2 | 5 1/4 | 2 3/4 | 25.1 |
| 25 | 8.520 | 1 | 3 1/2 | 5 1/4 | 3 | 28.3 |
| 26 | 8.840 | 1 | 3 1/2 | 5 1/4 | 3 | 29.9 |
| 30 | 10.110 | 1 | 3 3/4 | 5 3/4 | 3 | 39.5 |
| 32 | 10.750 | 1 | 3 3/4 | 5 3/4 | 3 | 43.8 |
| 35 | 11.710 | 1 | 3 3/4 | 5 3/4 | 3 | 49.1 |
| 36 | 12.030 | 1 1/4 | 3 3/4 | 5 3/4 | 3 1/8 | 54.2 |
| 42 | 13.940 | 1 1/4 | 3 3/4 | 5 3/4 | 3 1/8 | 71.5 |
| 45 | 14.900 | 1 1/4 | 3 3/4 | 5 3/4 | 3 1/8 | 73.5 |
